ANTHONY NISTOR // ROBOT ARM

Printed Servo Robot Arm

A 3D-printed arm on a rotating base. Servos move the shoulder, elbow, and wrist, and a printed holder puts a pen on the page.

SEE IT WRITE VIEW THE PHOTOS
// SYSTEM ARCHITECTURE

How the Arm Is Built

The arm is printed in purple and bolted together at each joint. A white ring sits on the base so the whole arm can turn. The servo cables run to a printed box that holds an ESP32-S3 and a PCA9685 servo driver. With a marker in the end mount, the arm writes ROBOTIX ONE.

  • Printed Links Purple printed segments, joined with screws, run from the flanged base up to the pen.
  • Servo Joints A servo turns the base. More servos lift the shoulder, bend the elbow, and set the wrist and the pen.
  • Control Box An ESP32-S3 and a PCA9685 PWM board sit in a printed enclosure and drive the servo cables.
ARM_MOTION.LOG ACTIVE
1. BASE

The flanged tower turns on the white ring

YAW
↓ Move out over the page
2. ARM

Shoulder and elbow set the reach

REACH
↓ Lower the pen
3. PEN

The wrist holds the marker on the paper

WRITE
// WRITING

ROBOTIX ONE on the Page

The end mount holds a marker. The arm sets the pen on the paper and writes ROBOTIX ONE.

PEN_ON_PAPER.JPGWRITING

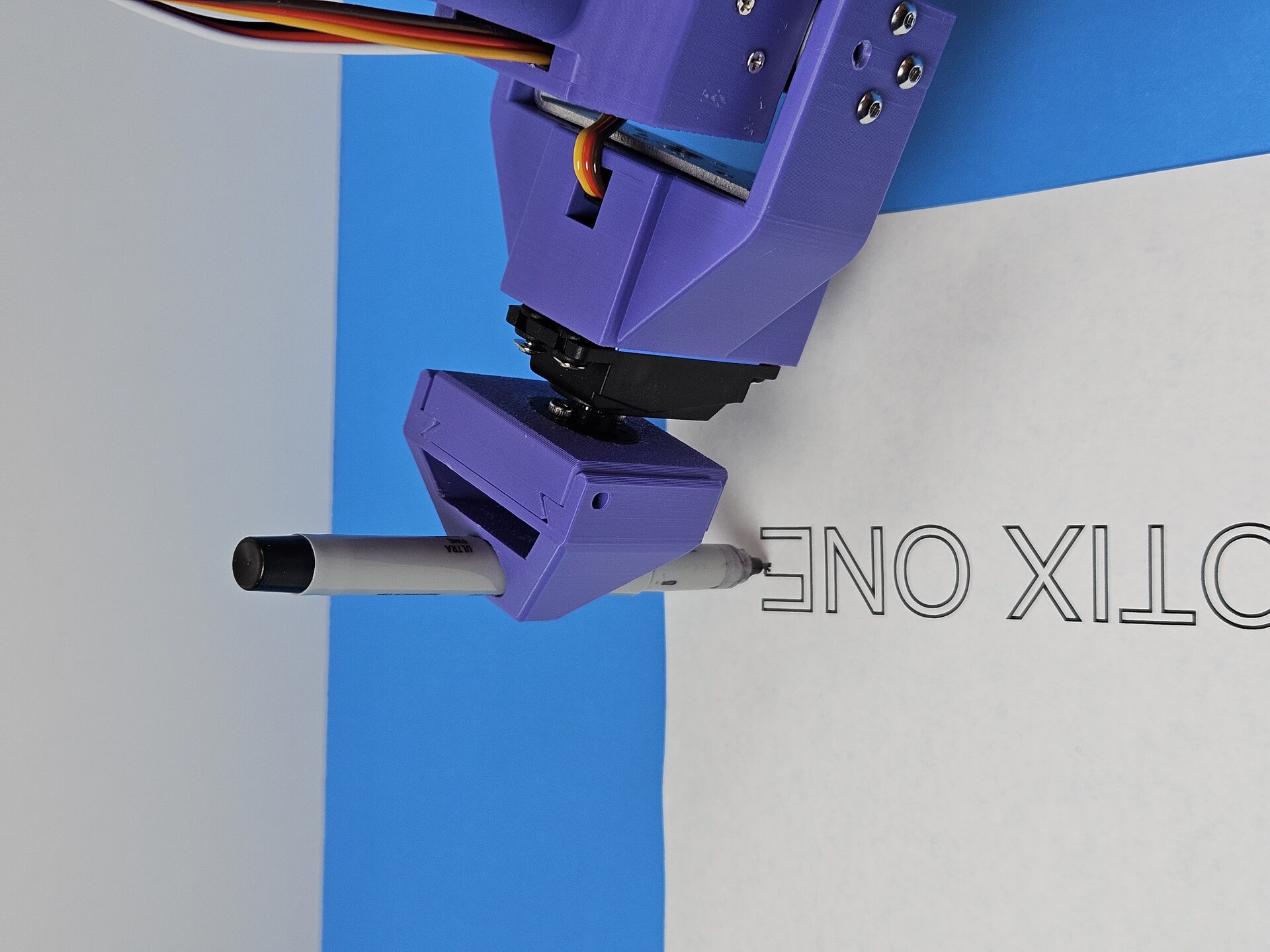

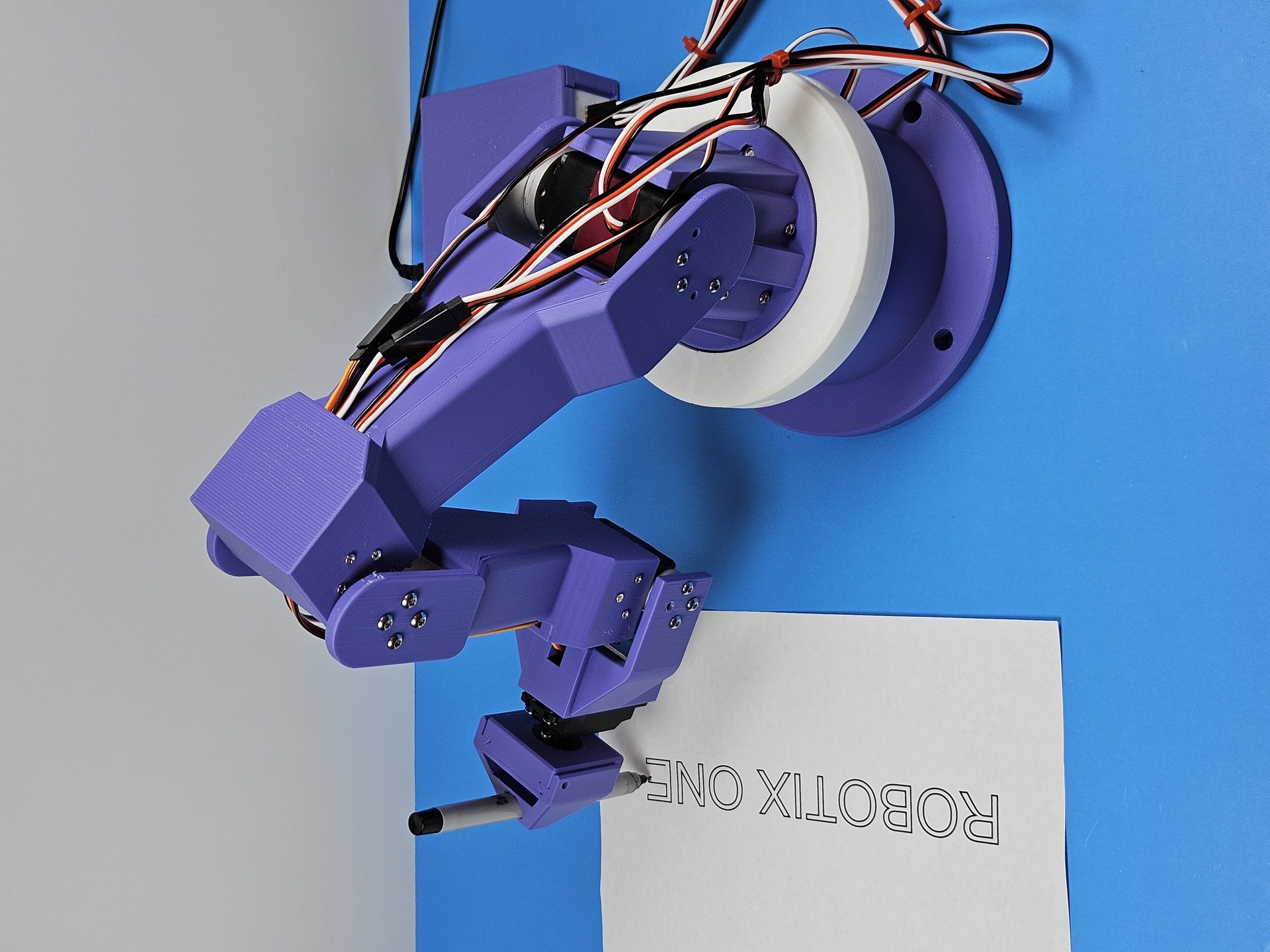

Pen on the Paper

The printed holder clamps a marker. The wrist servo keeps the tip on the page while the arm draws the letters.

// HARDWARE & SOFTWARE

System Component Breakdown

01

Printed Arm

Purple links, a flanged base, and a white turn ring, held together with screws.

02

Servos

Hobby servos in the base, shoulder, elbow, and wrist, including a DS3225 at the wrist.

03

ESP32-S3

The controller board in the printed box, with a USB port for power and programming.

04

PCA9685 Driver

A PWM servo board that takes the servo plugs and sits above the controller.

// PROJECT MEDIA

Build Photos

The finished arm, the pen writing ROBOTIX ONE, and the boards in the control box.

Finished Arm
CLICK TO ENLARGE

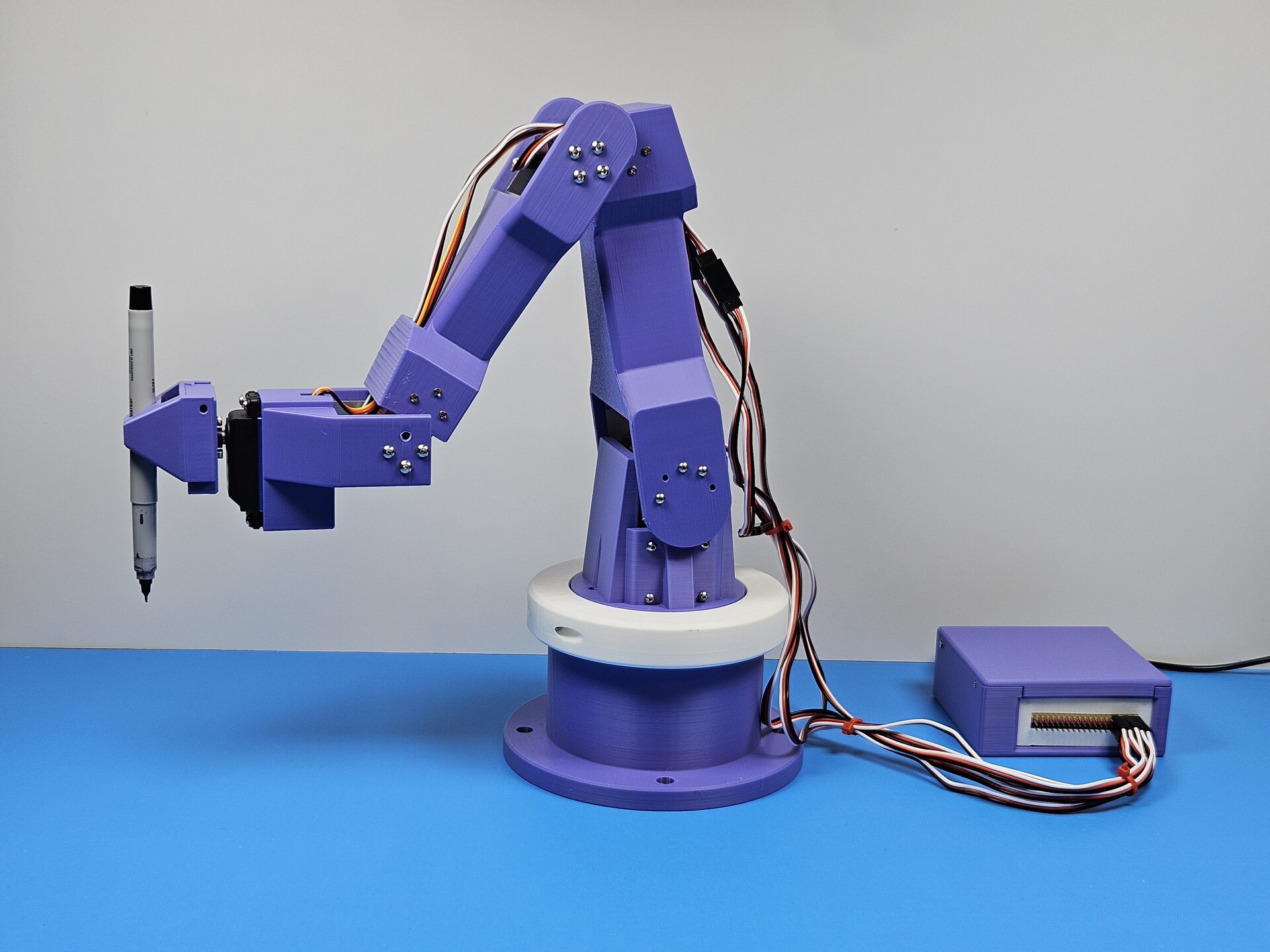

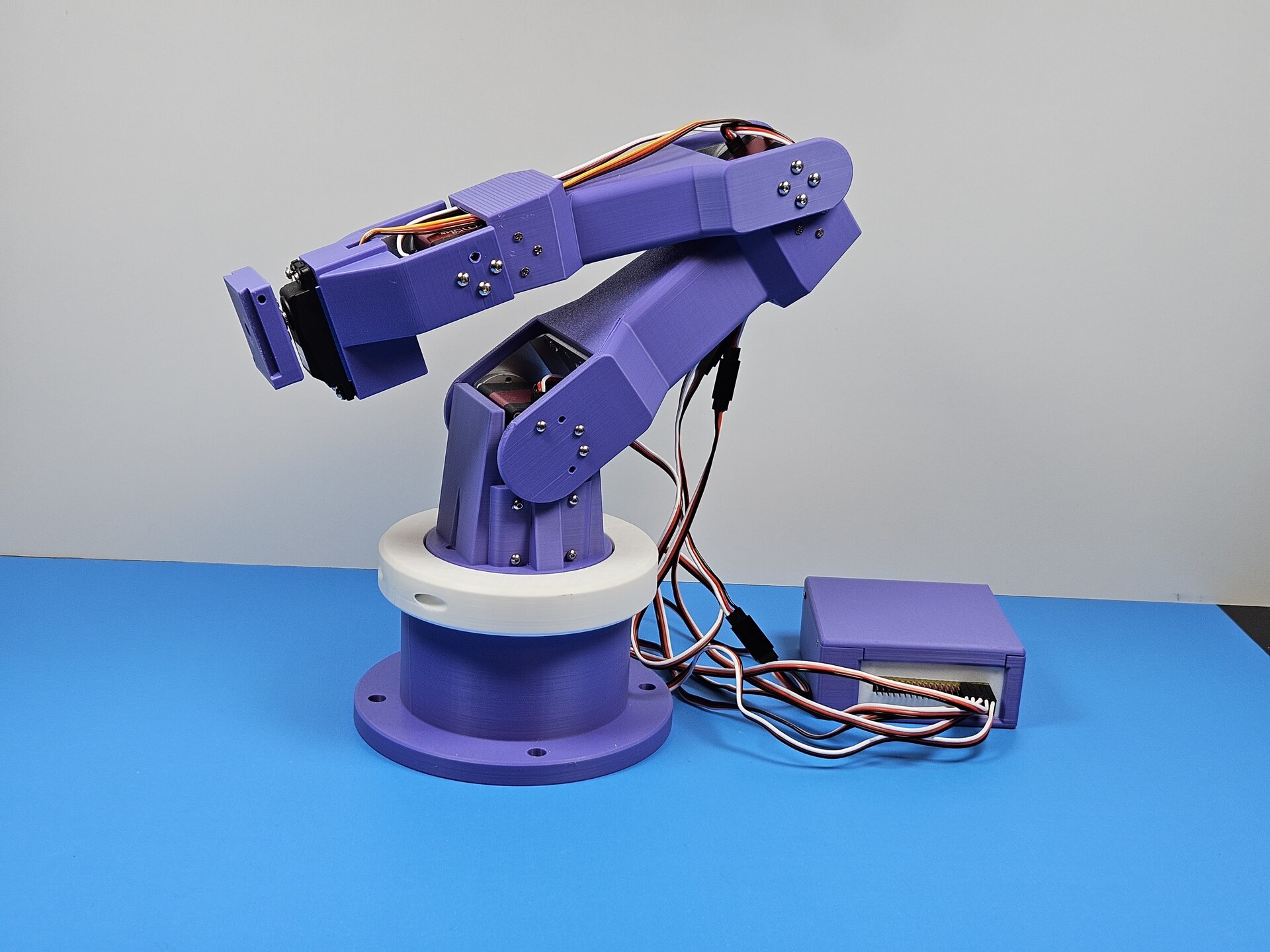

Finished Arm

The purple arm on its base, with the control box beside it.

Writing
CLICK TO ENLARGE

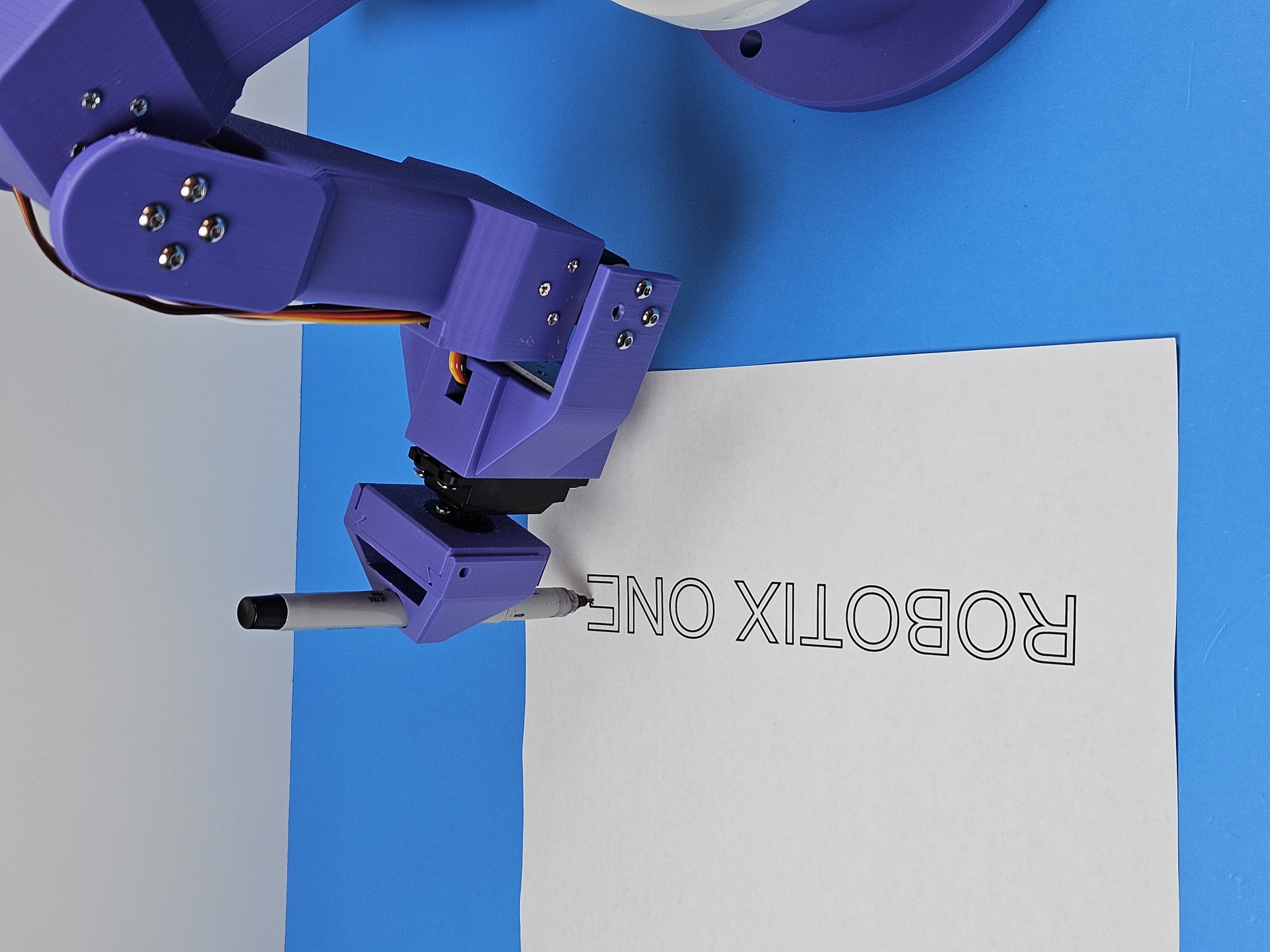

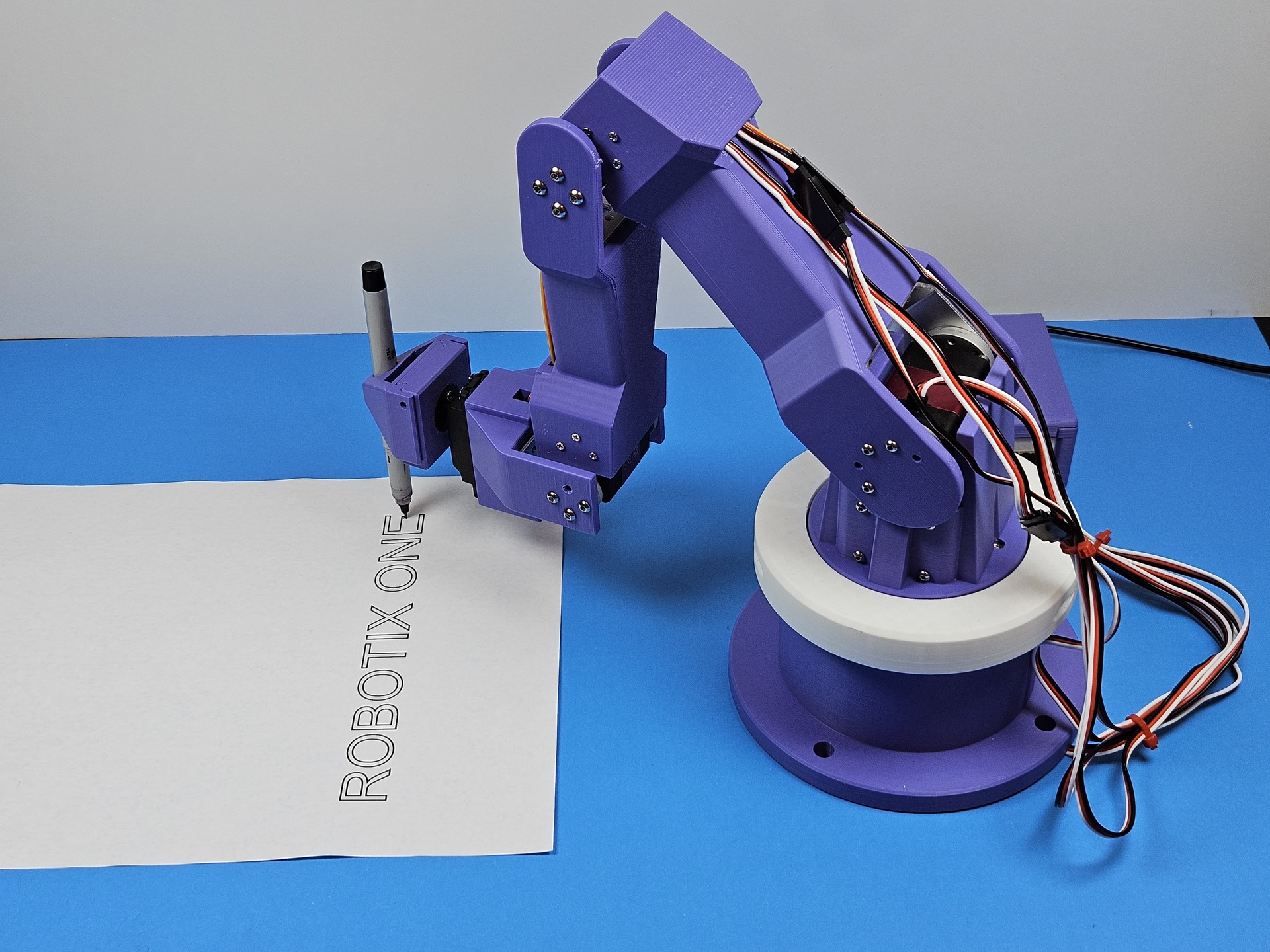

Writing

The pen on the paper, with ROBOTIX ONE written down the page.

Pen Mount
CLICK TO ENLARGE

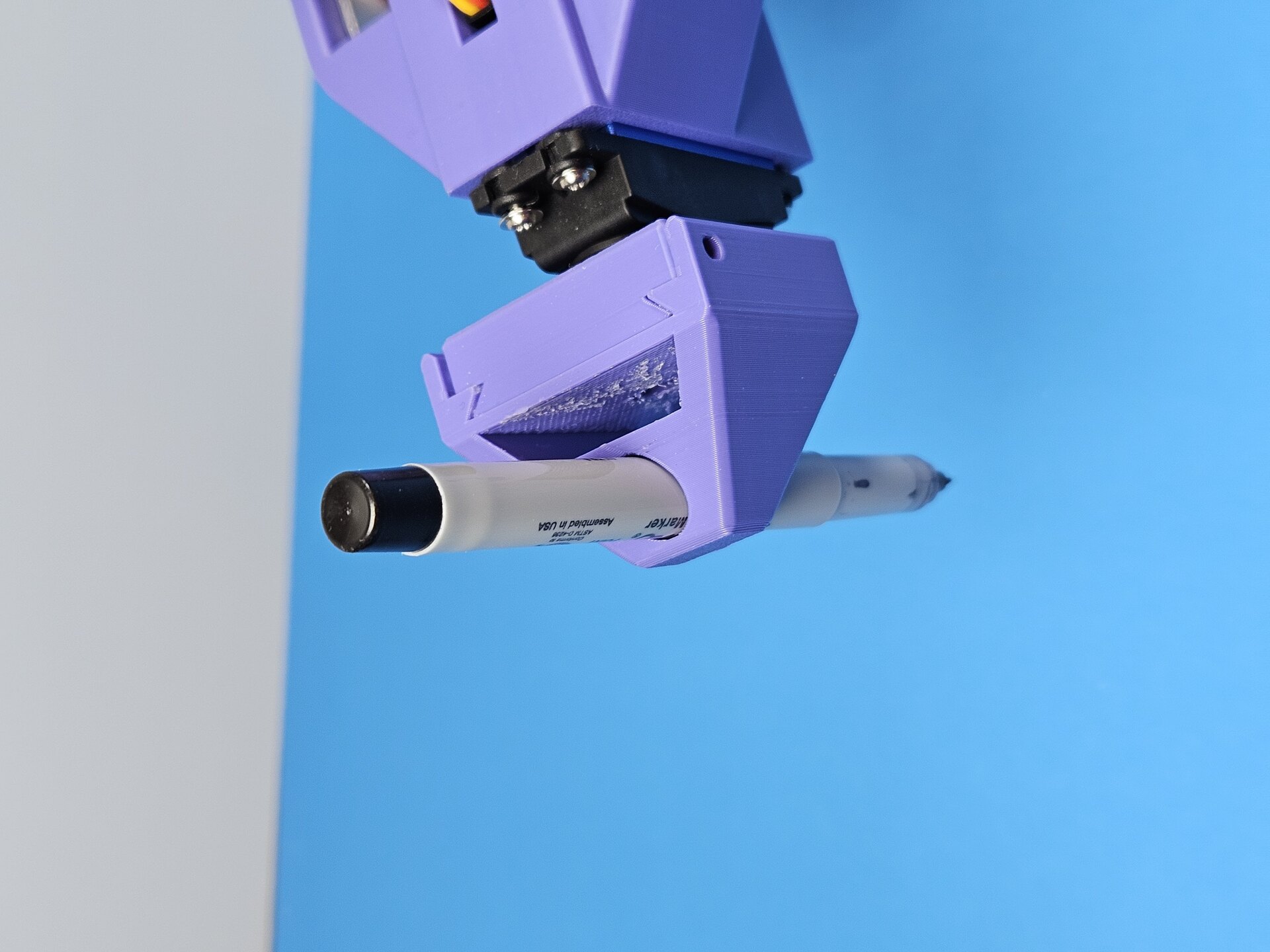

Pen Mount

A printed clamp that holds the marker at the end of the wrist.

Wrist Servo
CLICK TO ENLARGE

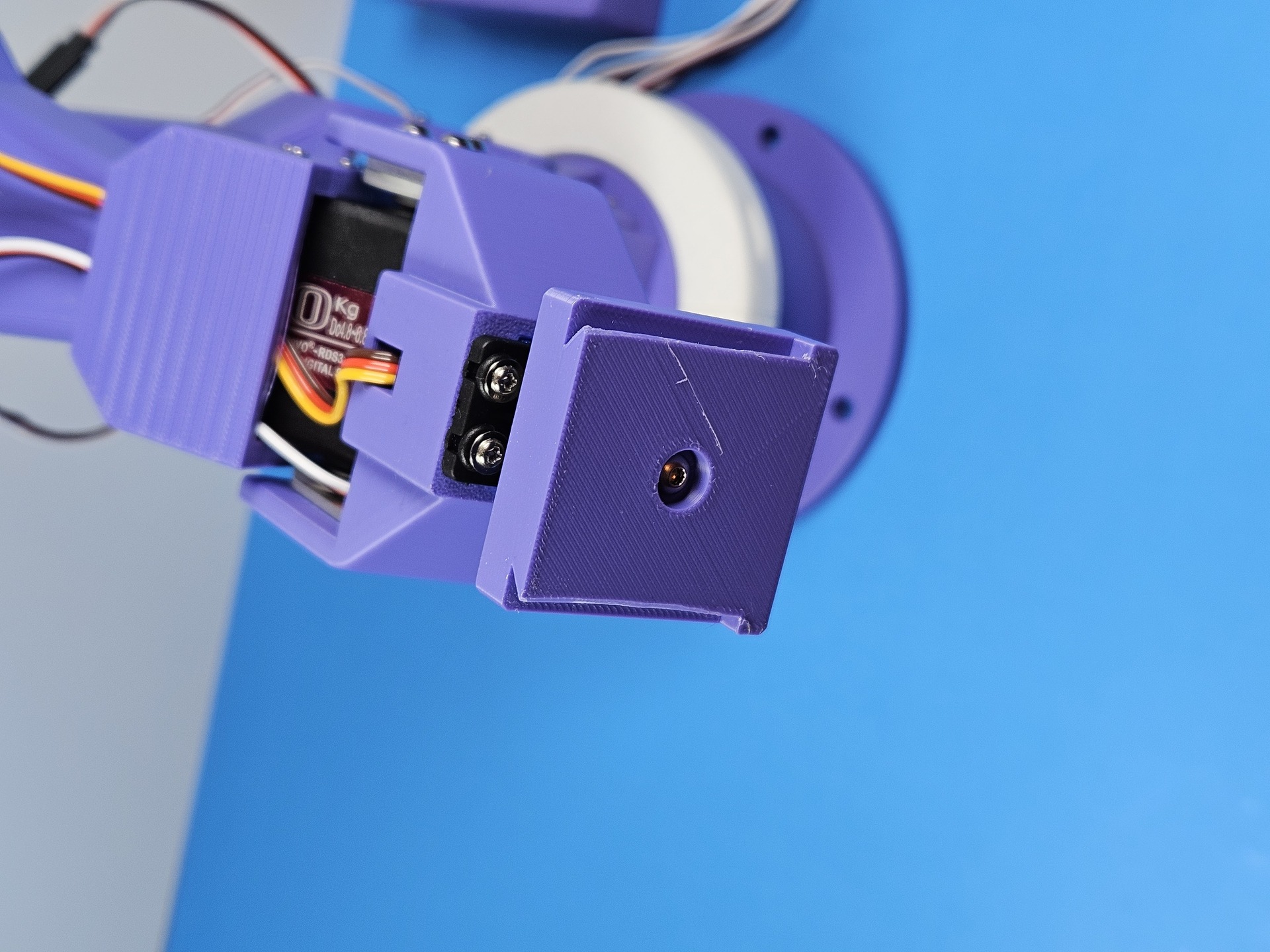

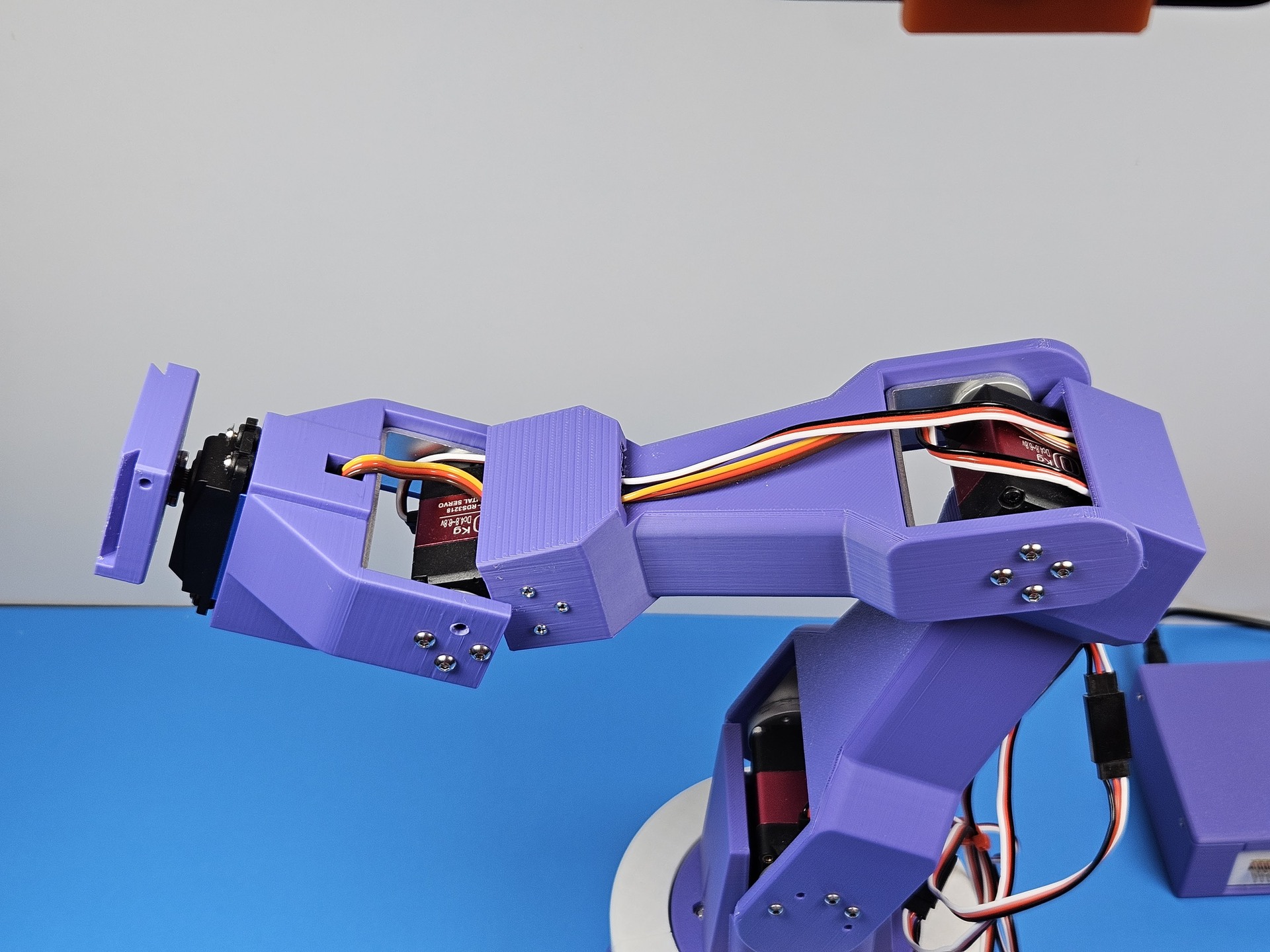

Wrist Servo

A DS3225 servo at the wrist, behind the printed tool plate.

Open Joints
CLICK TO ENLARGE

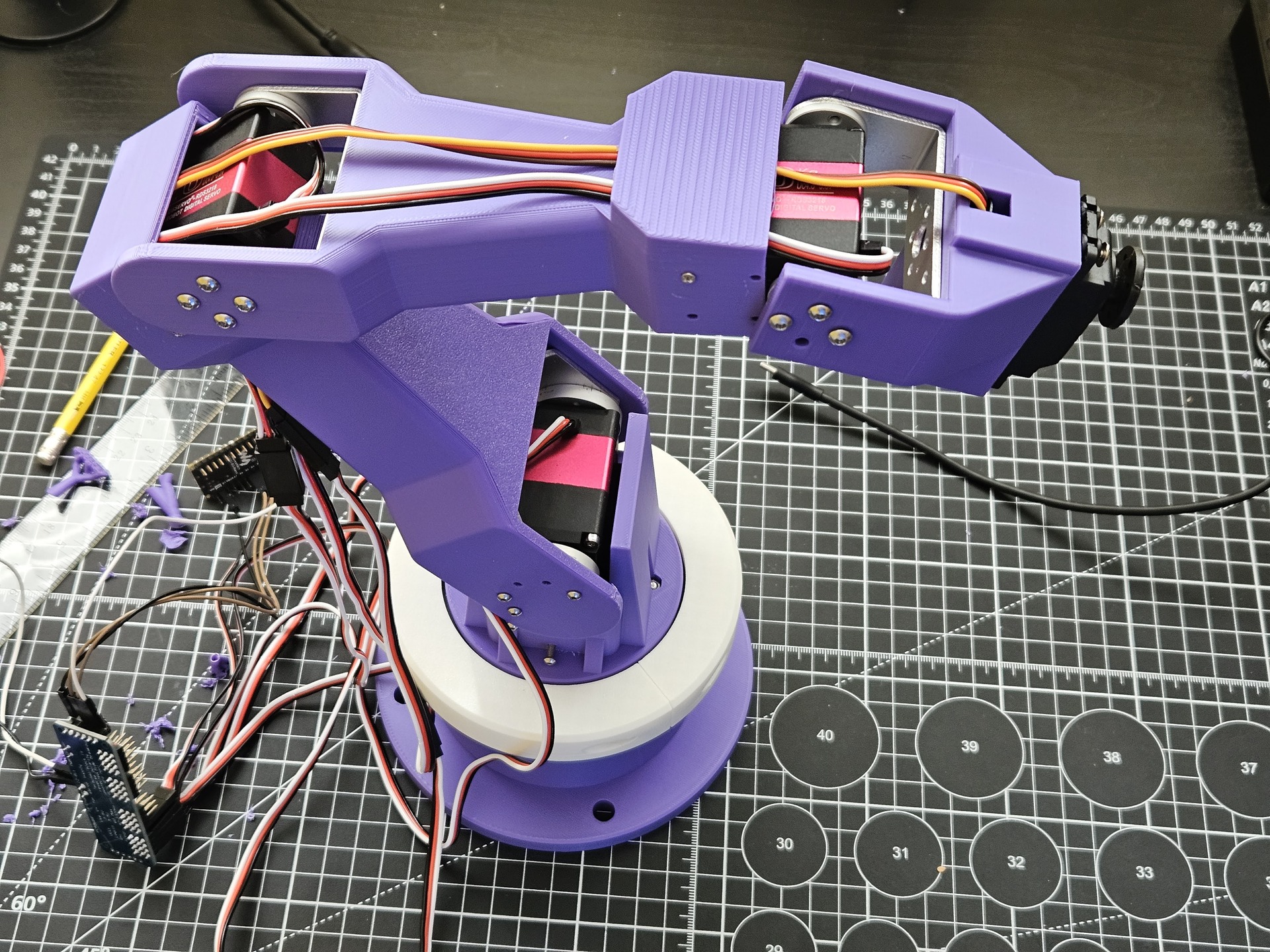

Open Joints

The arm on the bench with the servo covers off during assembly.

Control Box
CLICK TO ENLARGE

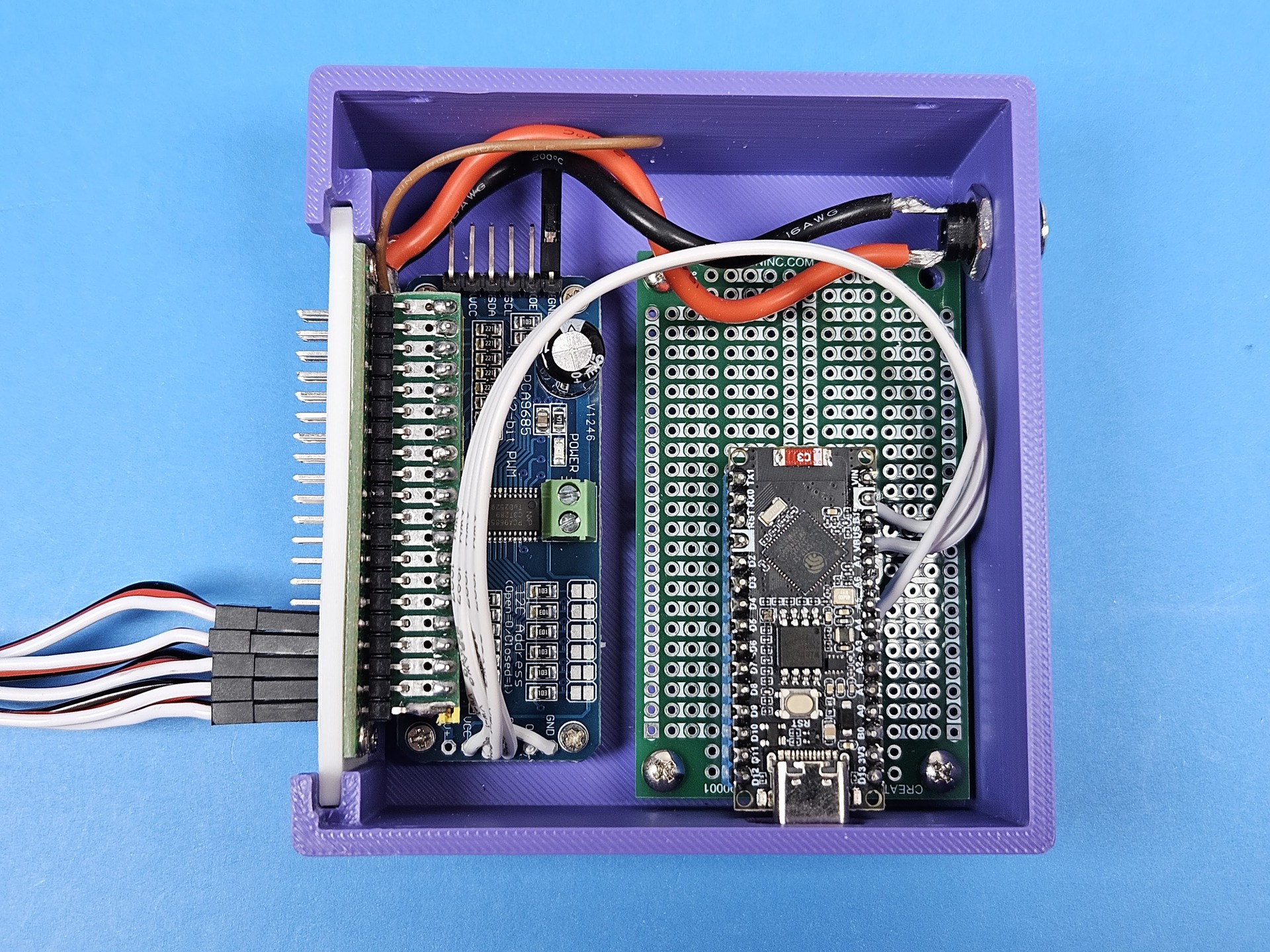

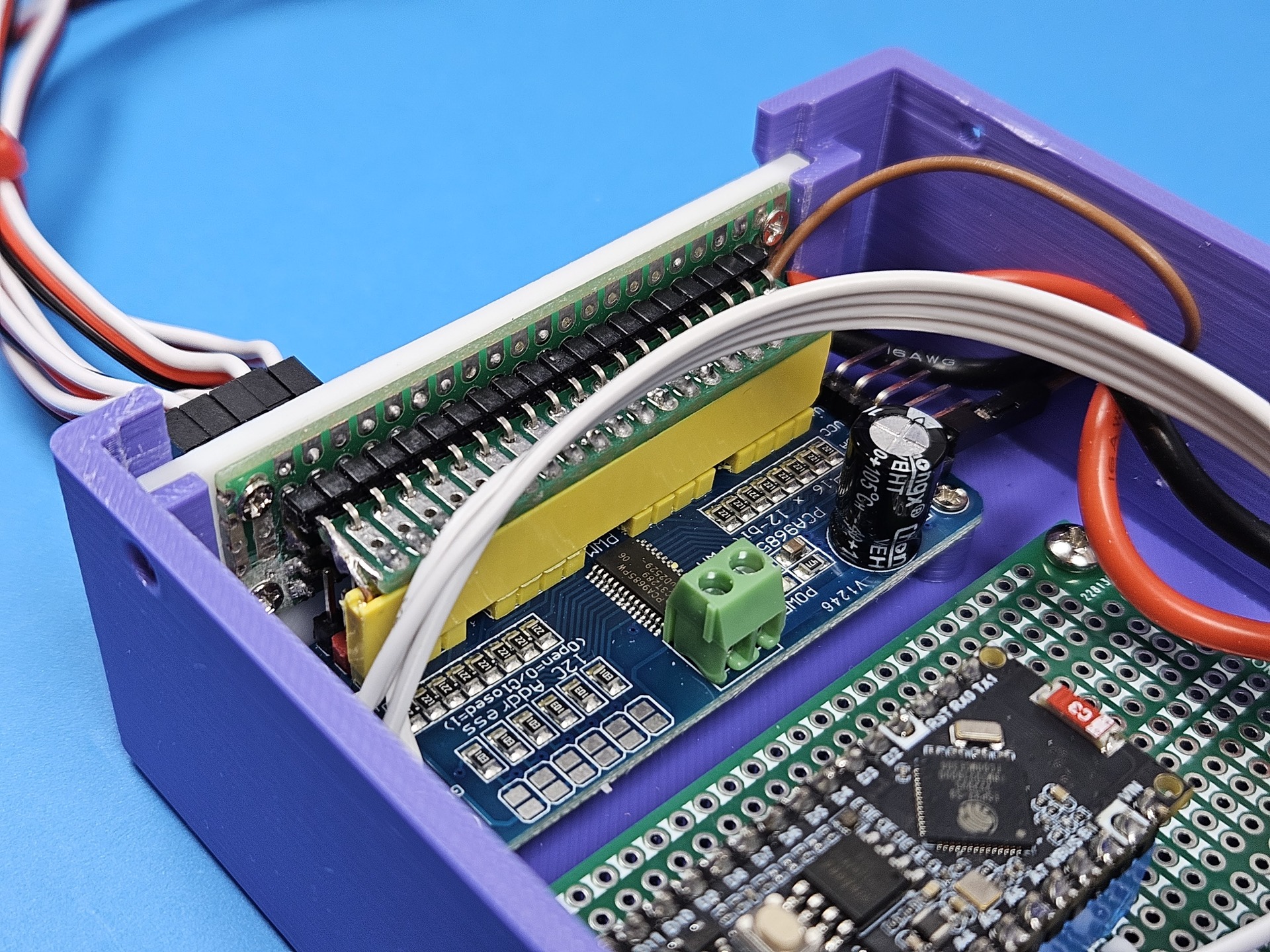

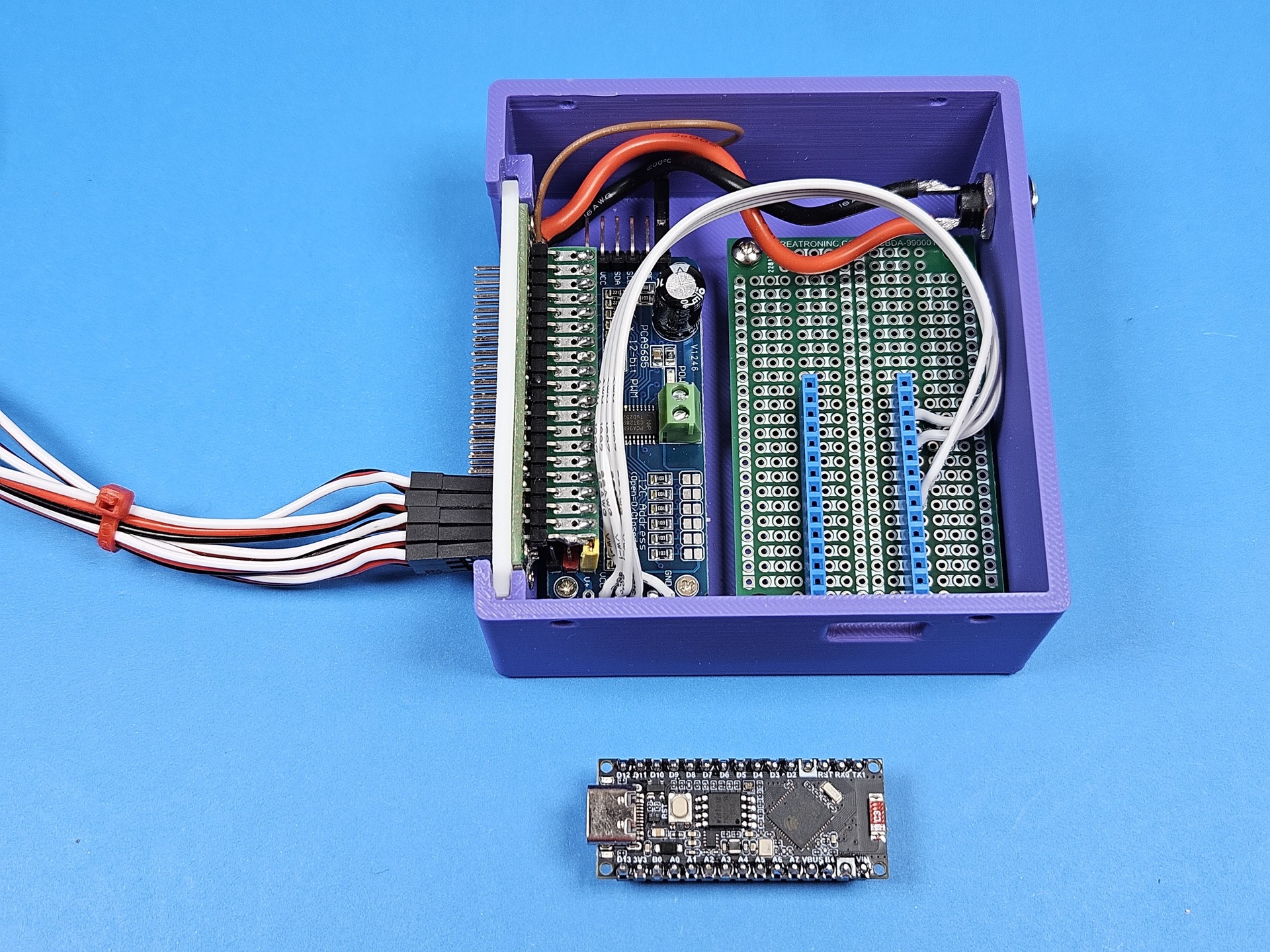

Control Box

The ESP32-S3 and PCA9685 wired inside the printed enclosure.

// SLIDESHOW

All Project Pictures

16 photographs and drawings from this build.

20260908_103355.jpg 1 / 16
// TECHNICAL SPECIFICATIONS

System Parameters & Metrics

PARAMETER SPECIFICATION / VALUE
Structure 3D-printed purple arm on a flanged base
Base White turn ring under the shoulder
Joints Base, shoulder, elbow, wrist, and pen mount
Actuators Hobby servos, including a DS3225 at the wrist
Controller ESP32-S3
Servo Driver PCA9685 PWM board
Enclosure Printed purple control box
End Effector Printed pen holder
Shown Writing ROBOTIX ONE
