Race Tracks

A pair of race tracks on long blue mats, set with buildings, construction cones, arches, and parking spots for a school robot-racing competition.

VIEW HARDWARE & VIDEO
// SYSTEM ARCHITECTURE

How the Courses Are Laid Out

The competition uses two matching tracks so robots can race side by side. Each course sits on its own long mat. The obstacles are printed parts and cones, placed so a small robot has to steer, pass under arches, and finish in a parking spot.

  • Two Long Mats Each track is a separate blue mat. The pair can run next to each other for a head-to-head race.
  • Printed City Pieces Buildings, gates, fences, and white arches turn the mat into a street the robot has to thread.
  • Cones and Parking Orange construction cones mark the lane. Red frames and white platforms mark the gates and the parking spots.
COURSE_LAYOUT.LOG ACTIVE
1. START

Robot enters at the open end of the mat

LANE
↓ Follow the marked lane
2. COURSE

Buildings, arches, cones, and gates

STEER
↓ Stop in the spot
3. PARKING

White platform at the end of the obstacles

FINISH
// HARDWARE & SOFTWARE

System Component Breakdown

01

Race Mats

Two long blue mats, one course on each, laid out so two robots can run at once.

02

Buildings and Arches

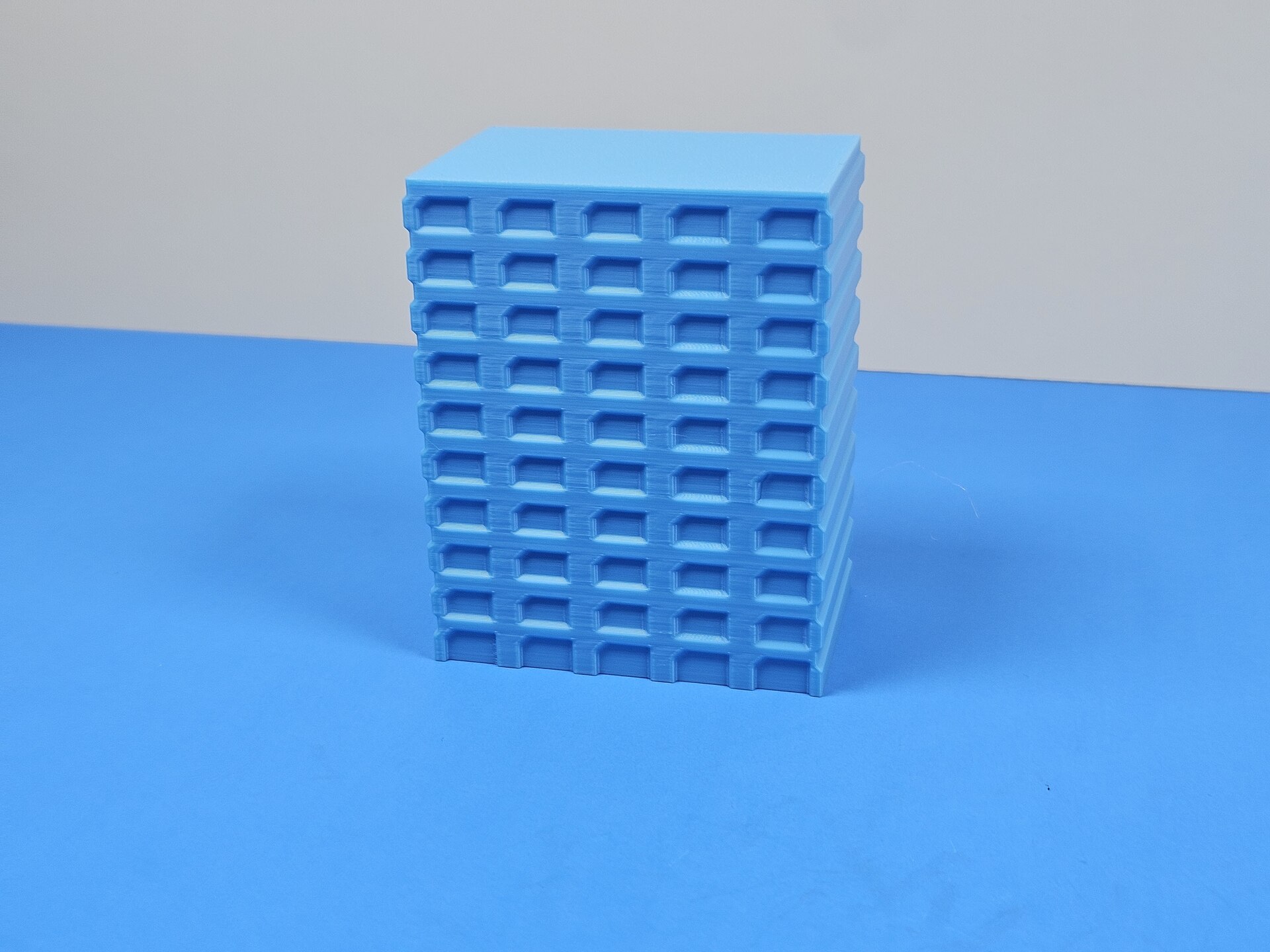

Printed towers, gates, fences, and pairs of white arches that a robot passes through.

03

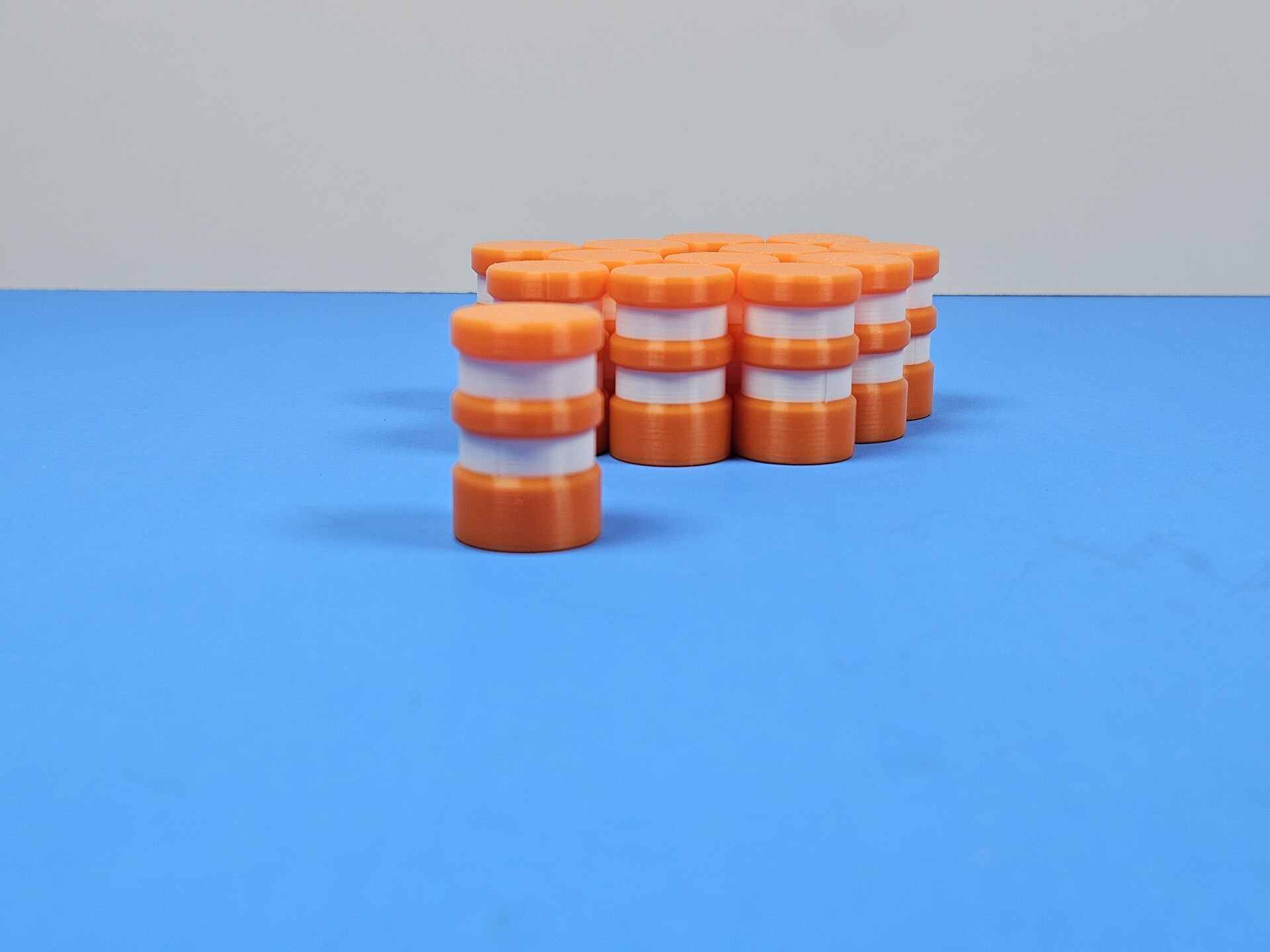

Construction Cones

Orange cones set along the lane to keep the robot on the course.

04

Parking Spots

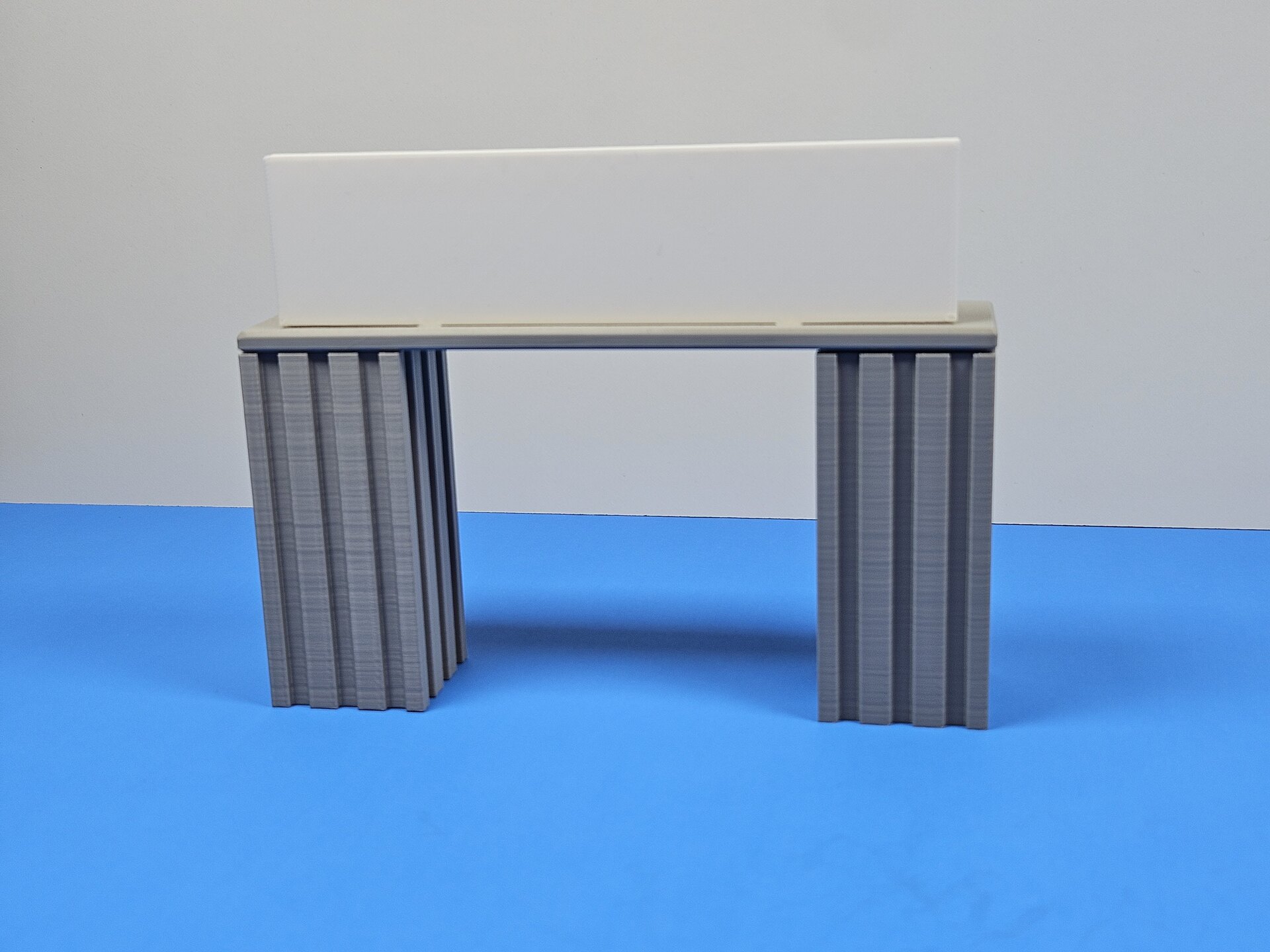

White platforms and red gate frames that mark where a robot parks at the end of the run.

// PROJECT MEDIA

Video Demonstration & Photos

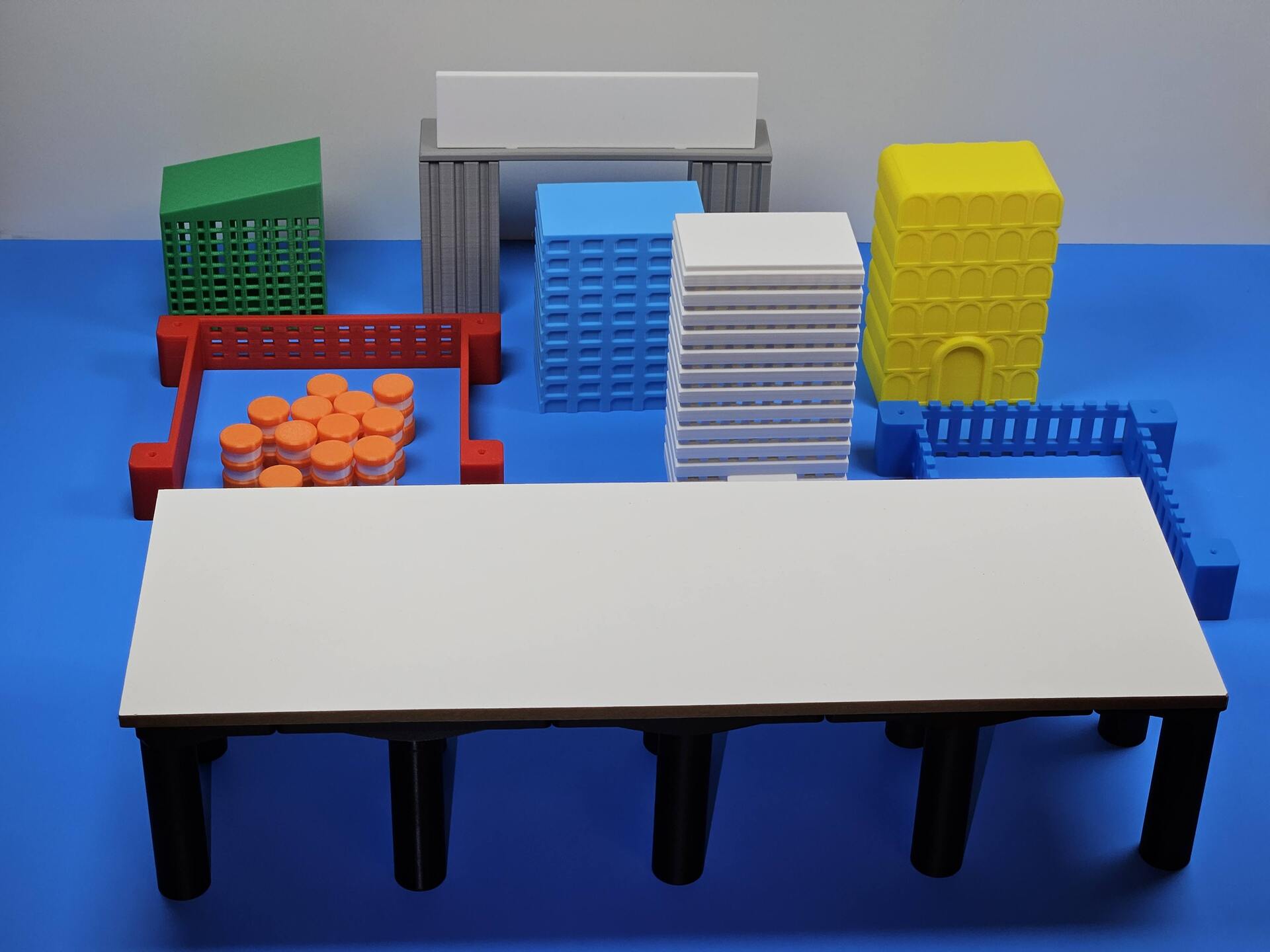

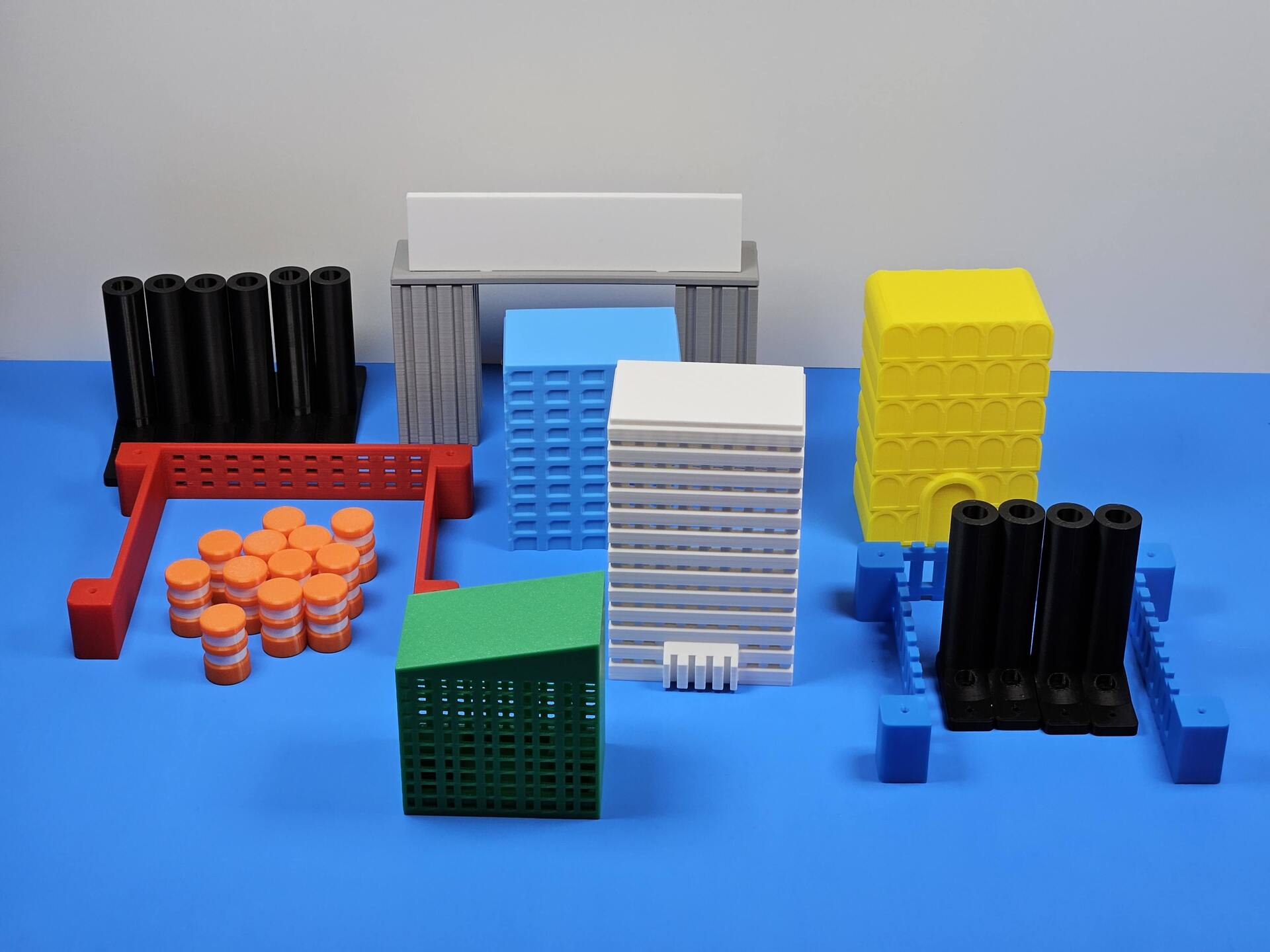

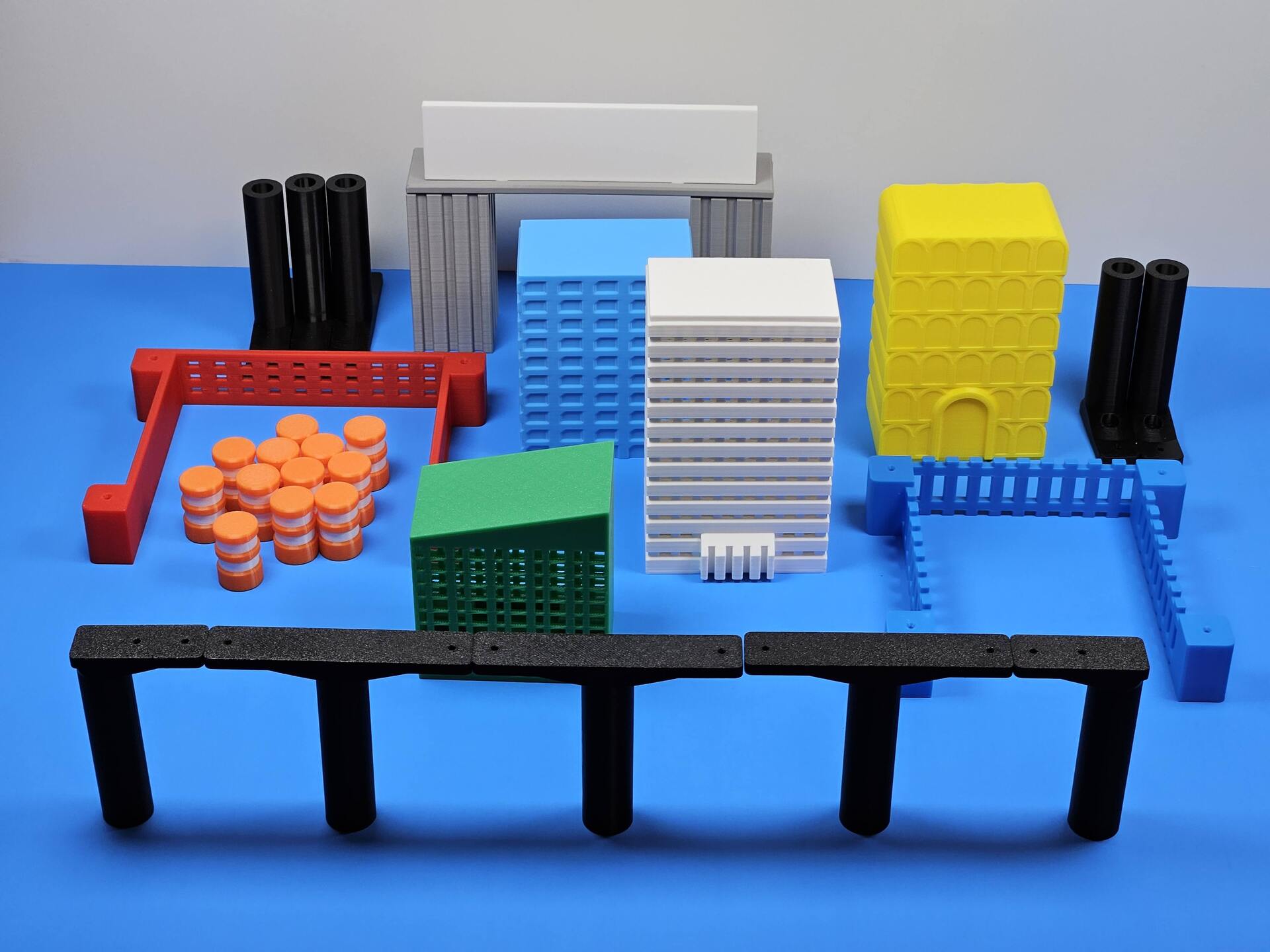

The printed pieces, the two mats at home, and the race at school.

TRACK_LAYOUT.MP4 BUILD WEEK

Track Recording

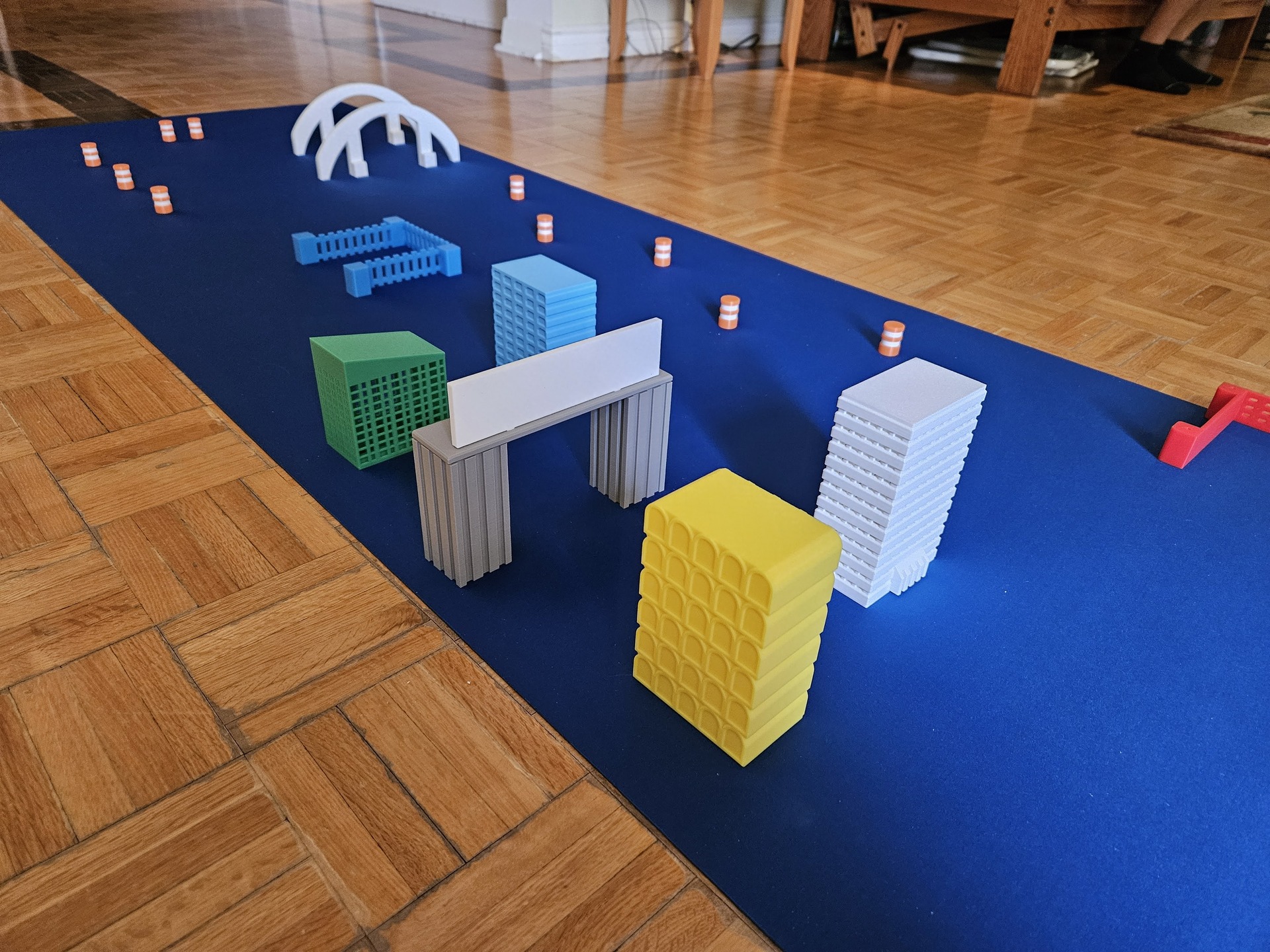

The same layout recording: cones, arches, and buildings on the mat before the courses were moved to school.

Both Tracks
CLICK TO ENLARGE

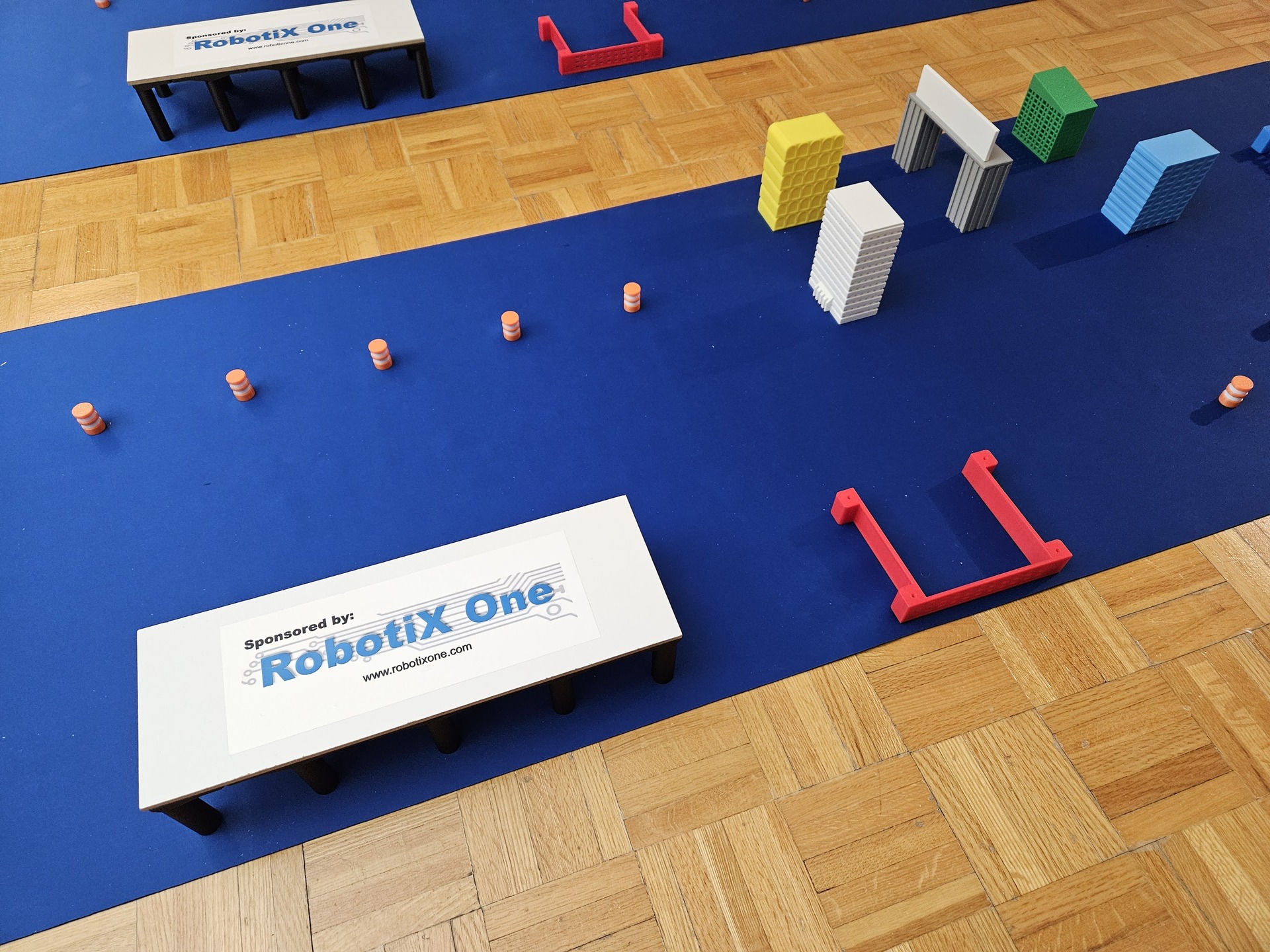

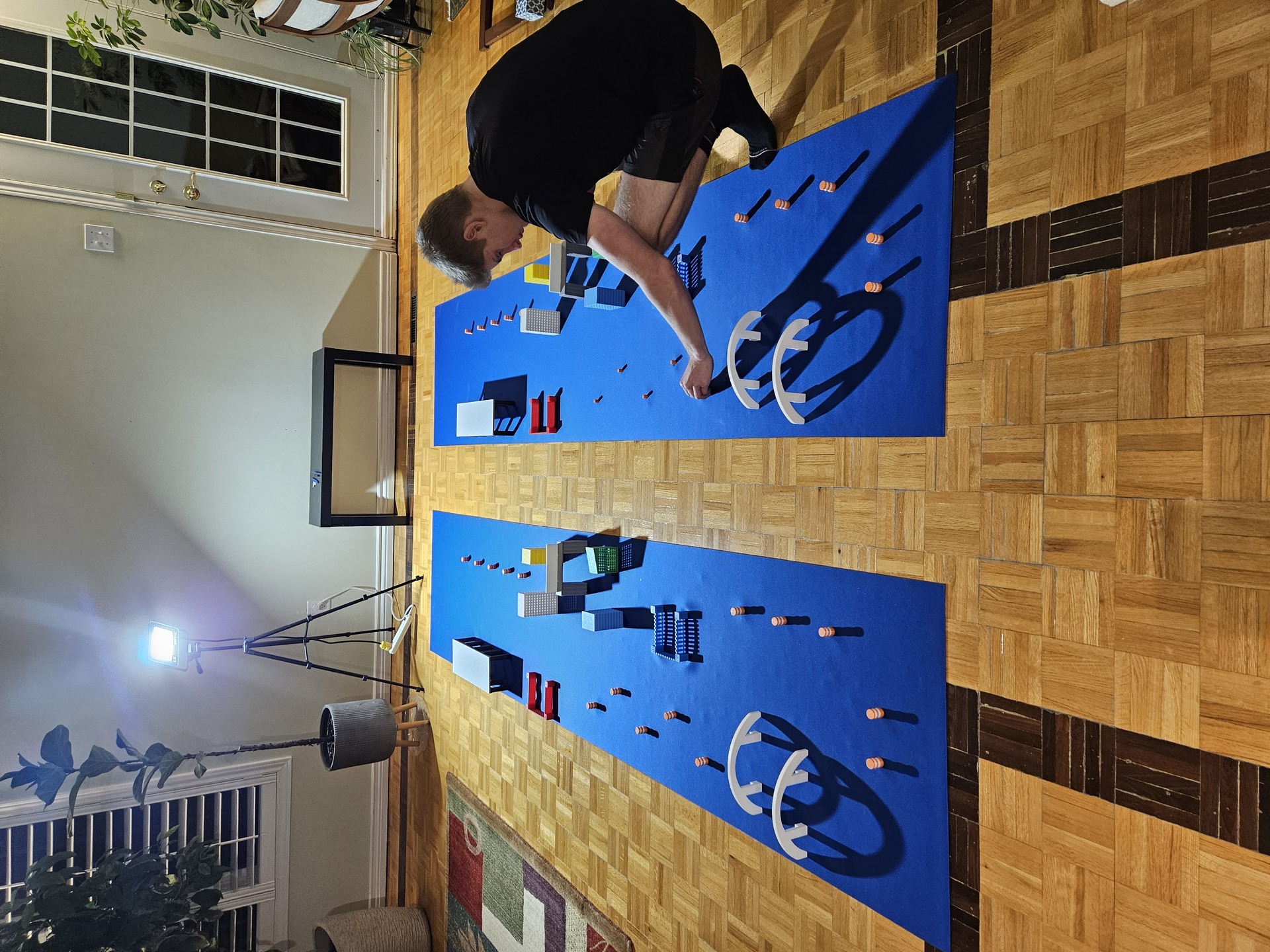

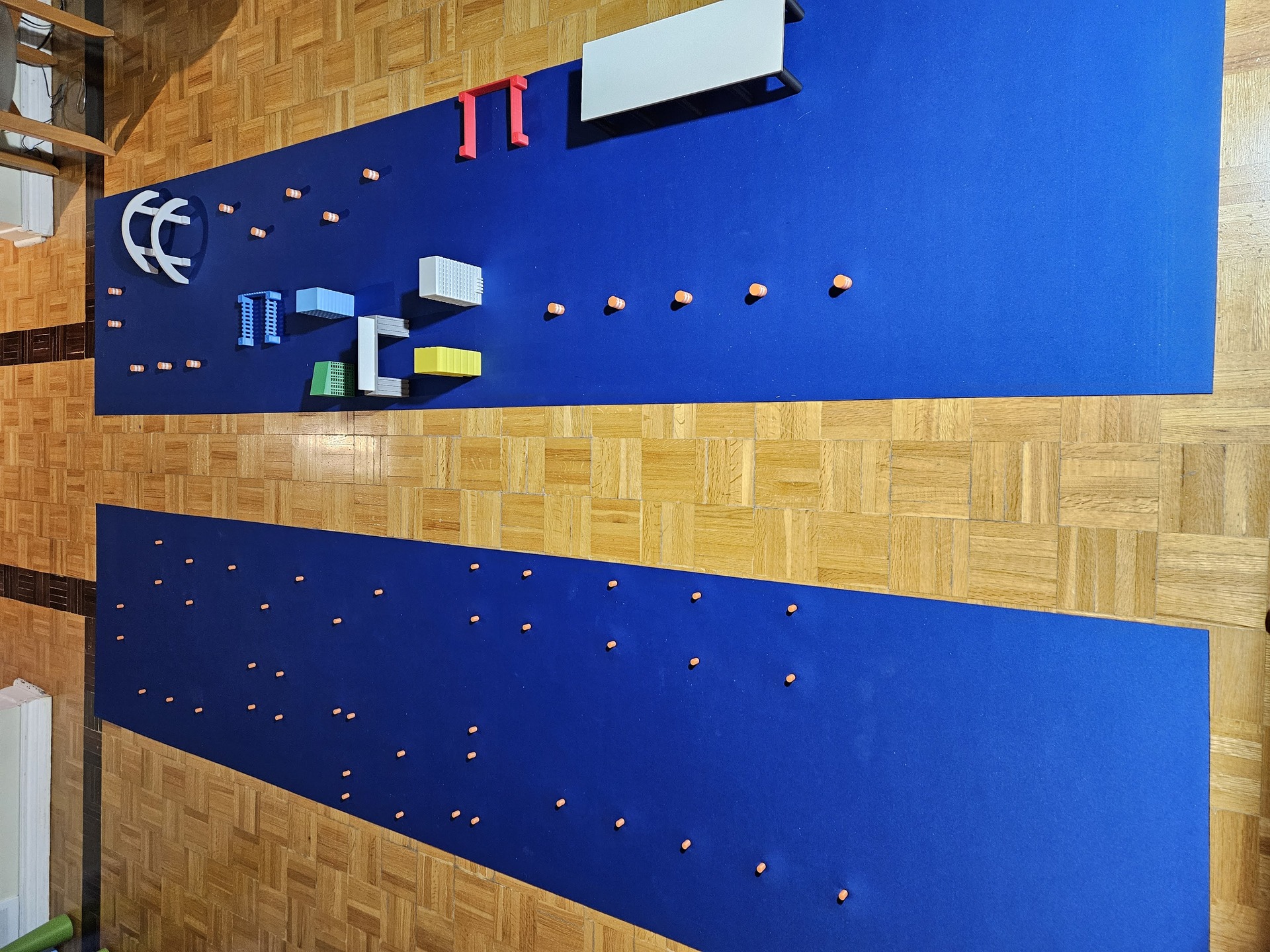

Both Tracks

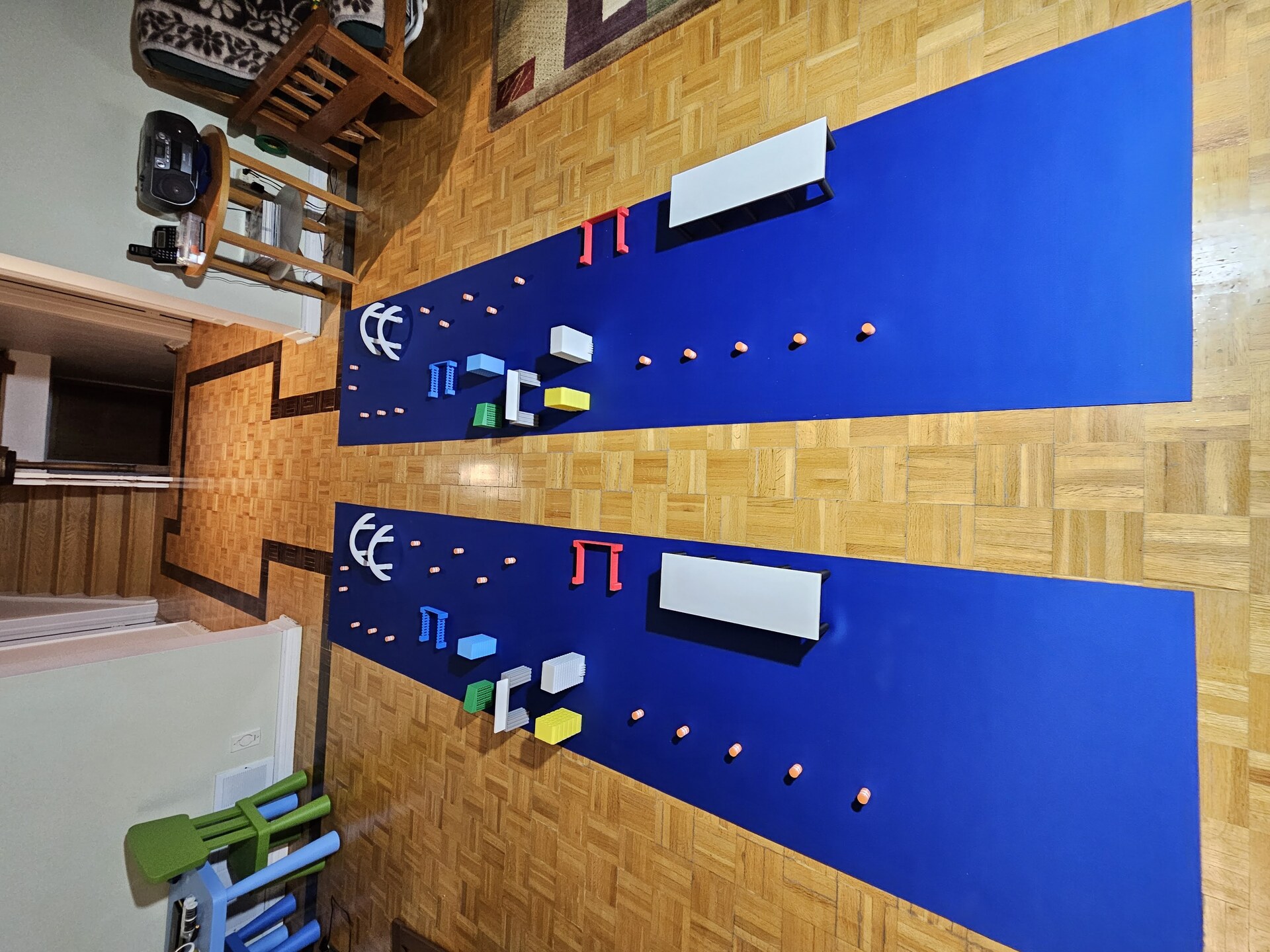

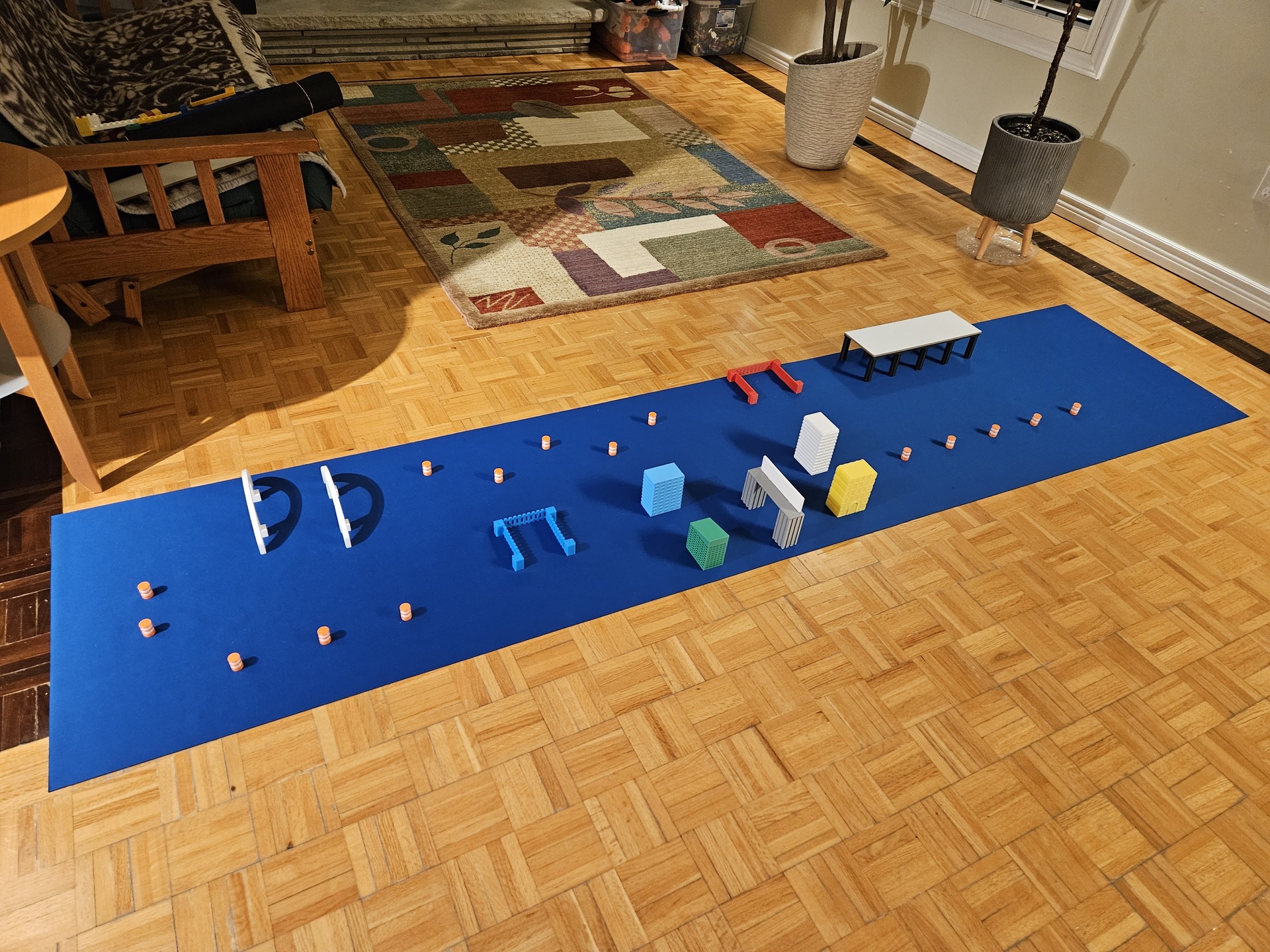

The two mats side by side, each with cones, buildings, arches, and a parking platform.

Matched Courses
CLICK TO ENLARGE

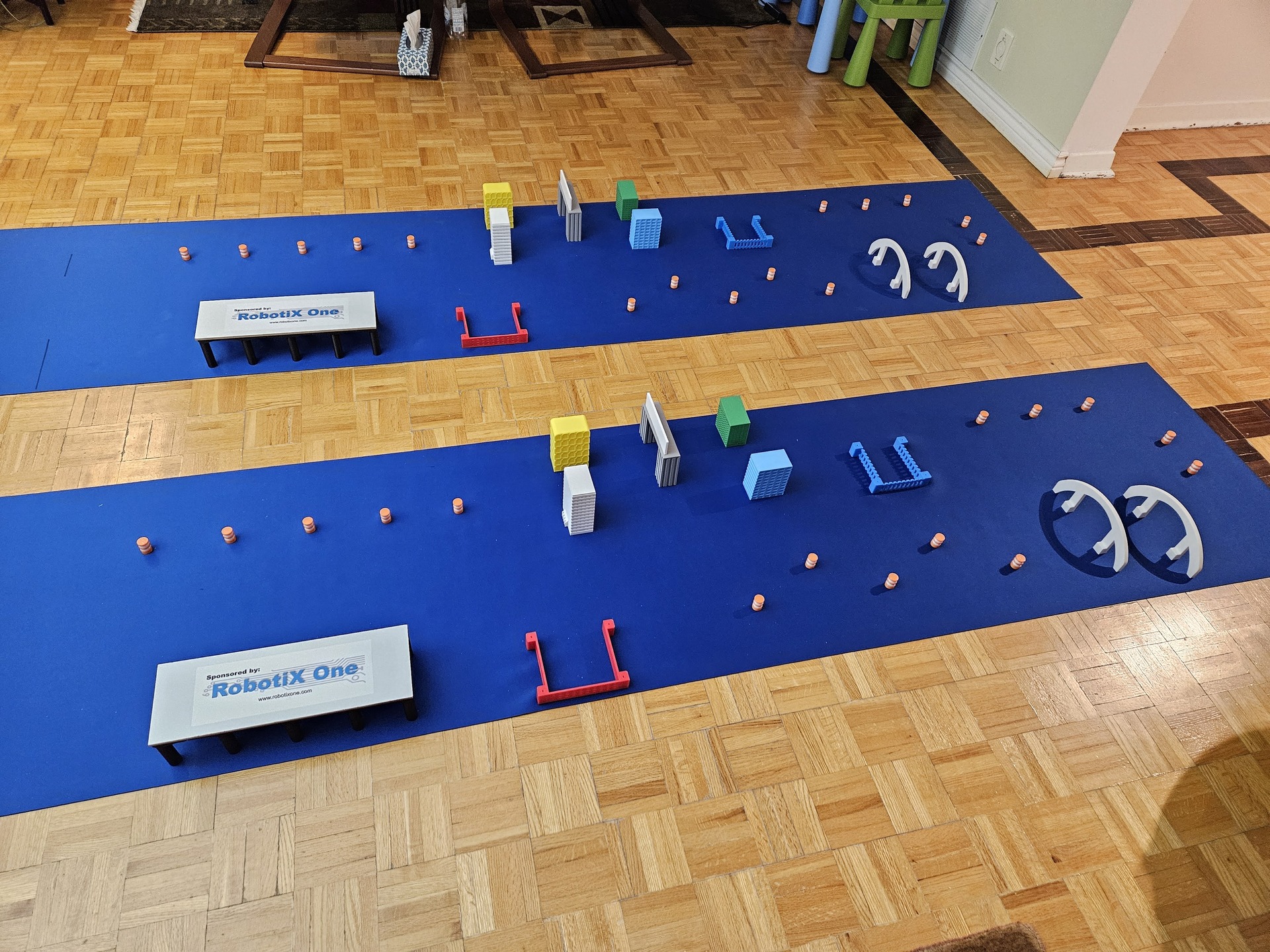

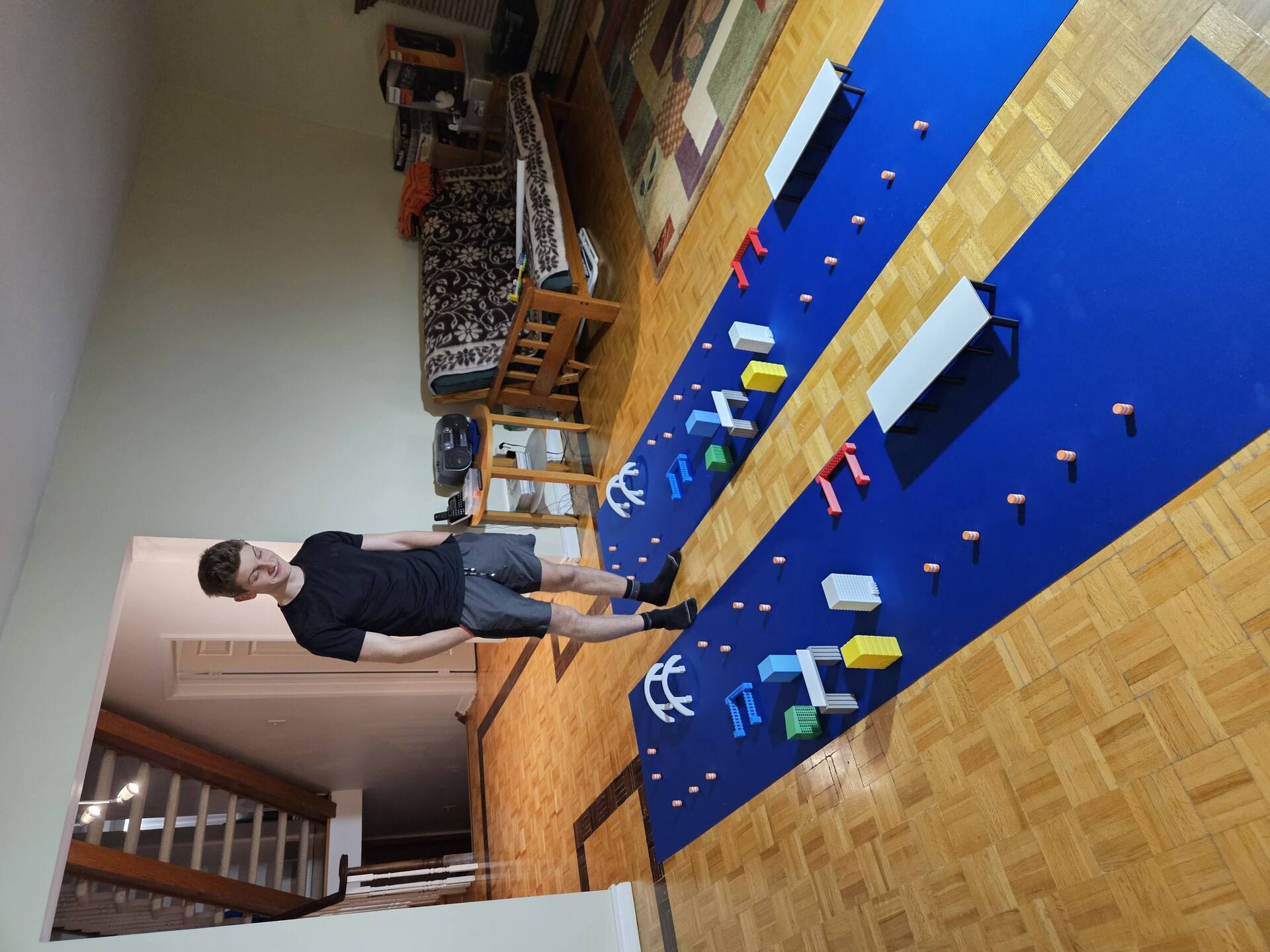

Matched Courses

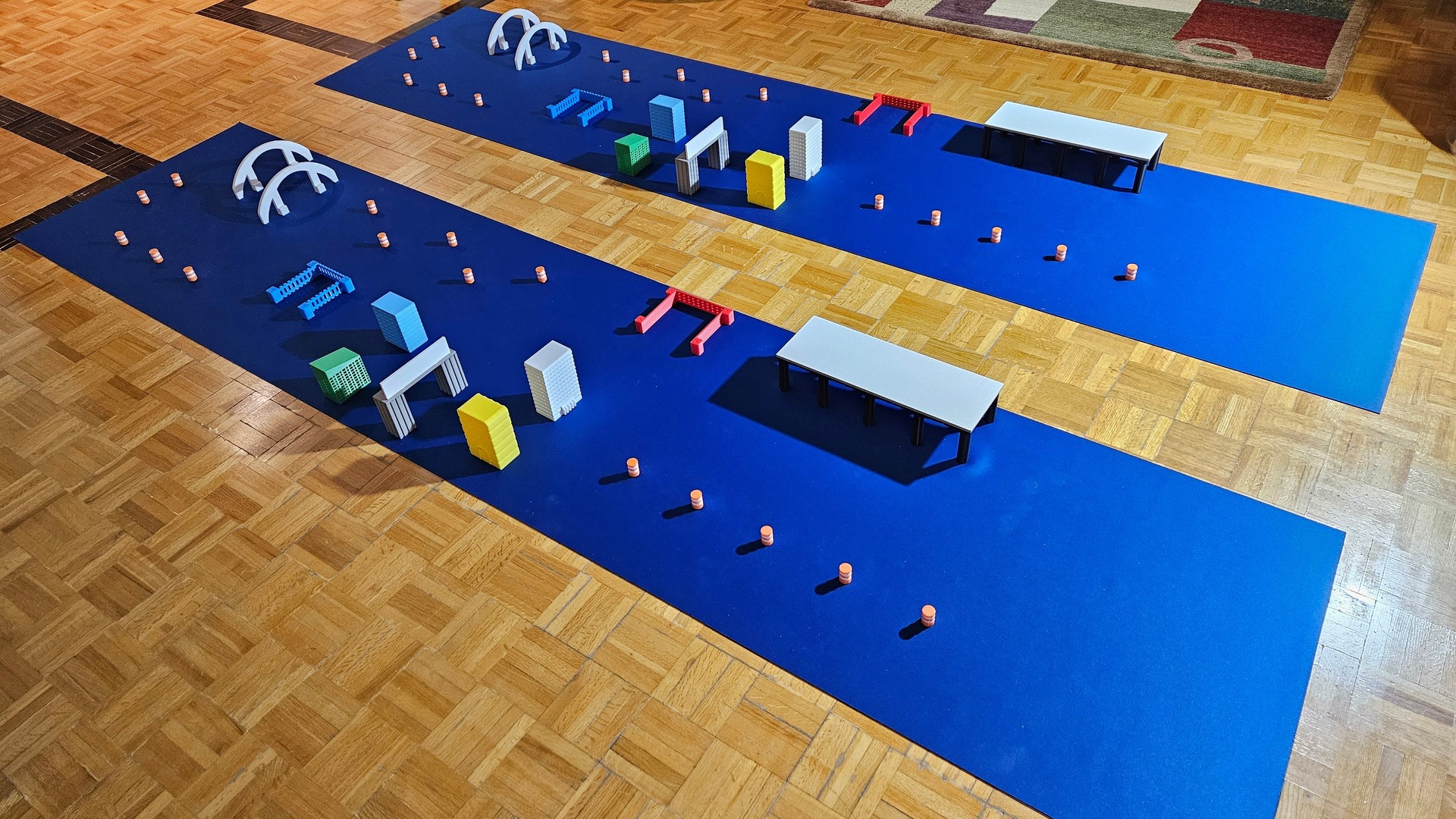

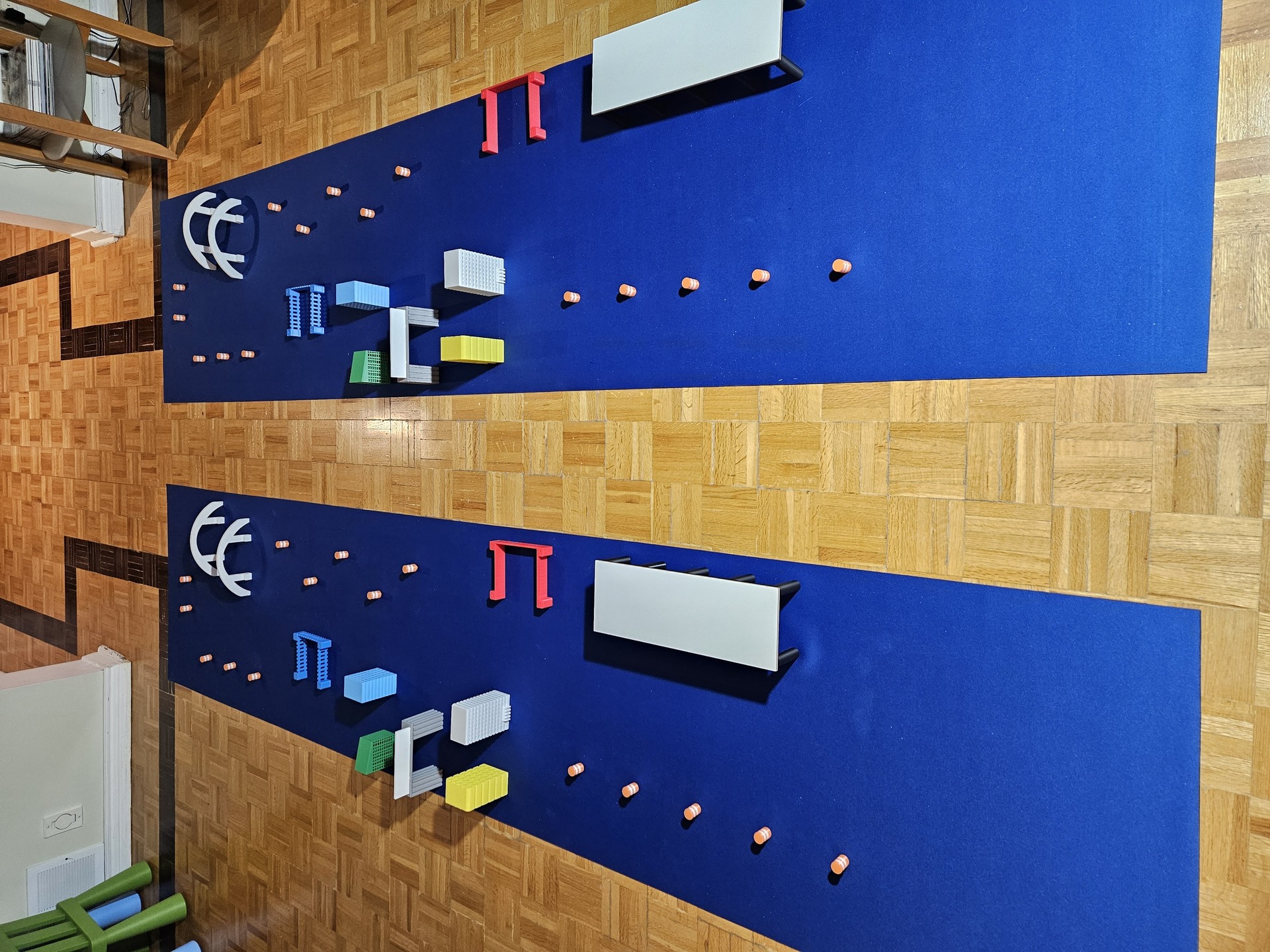

A straight-on view of the pair, ready for two robots.

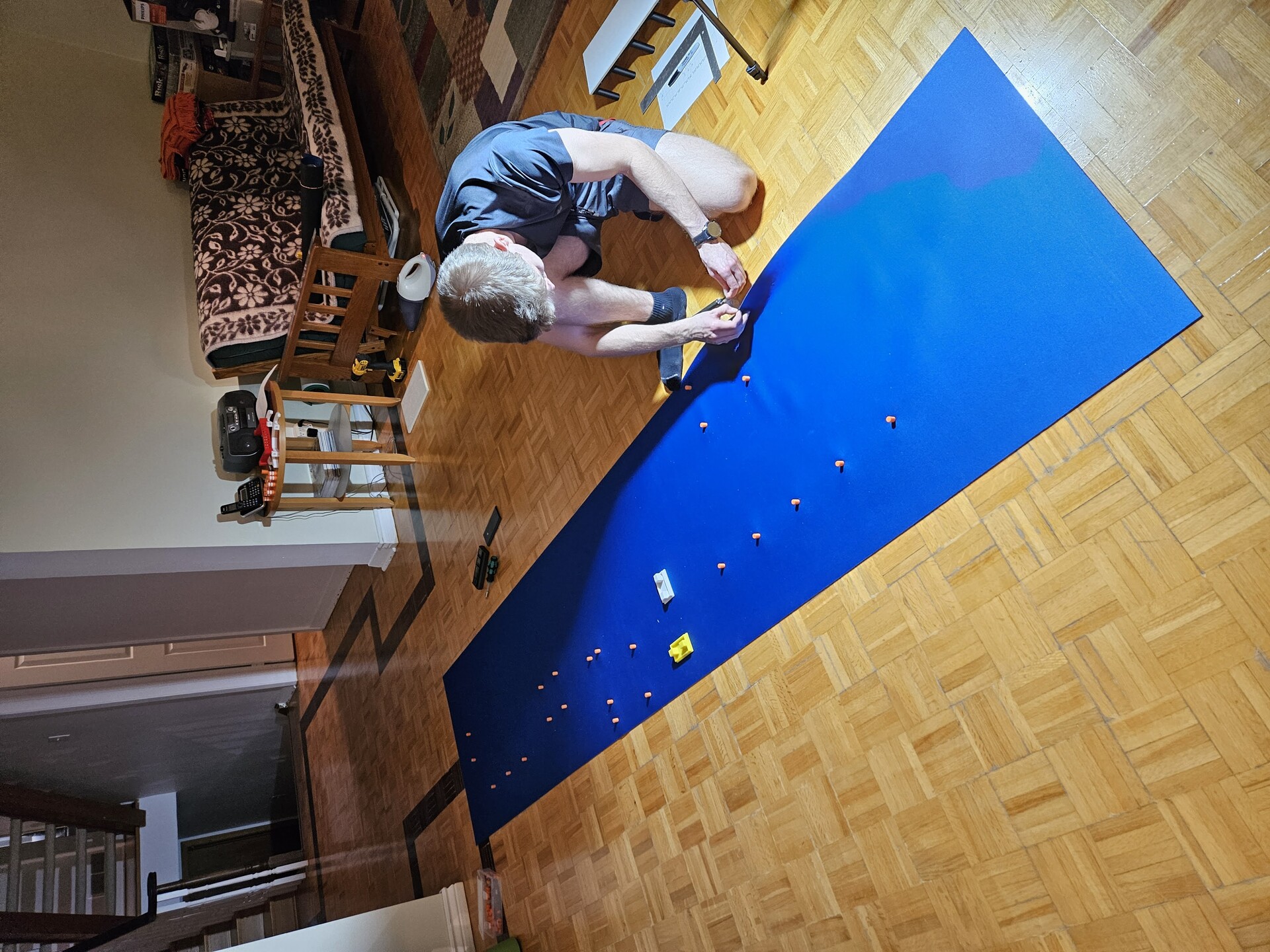

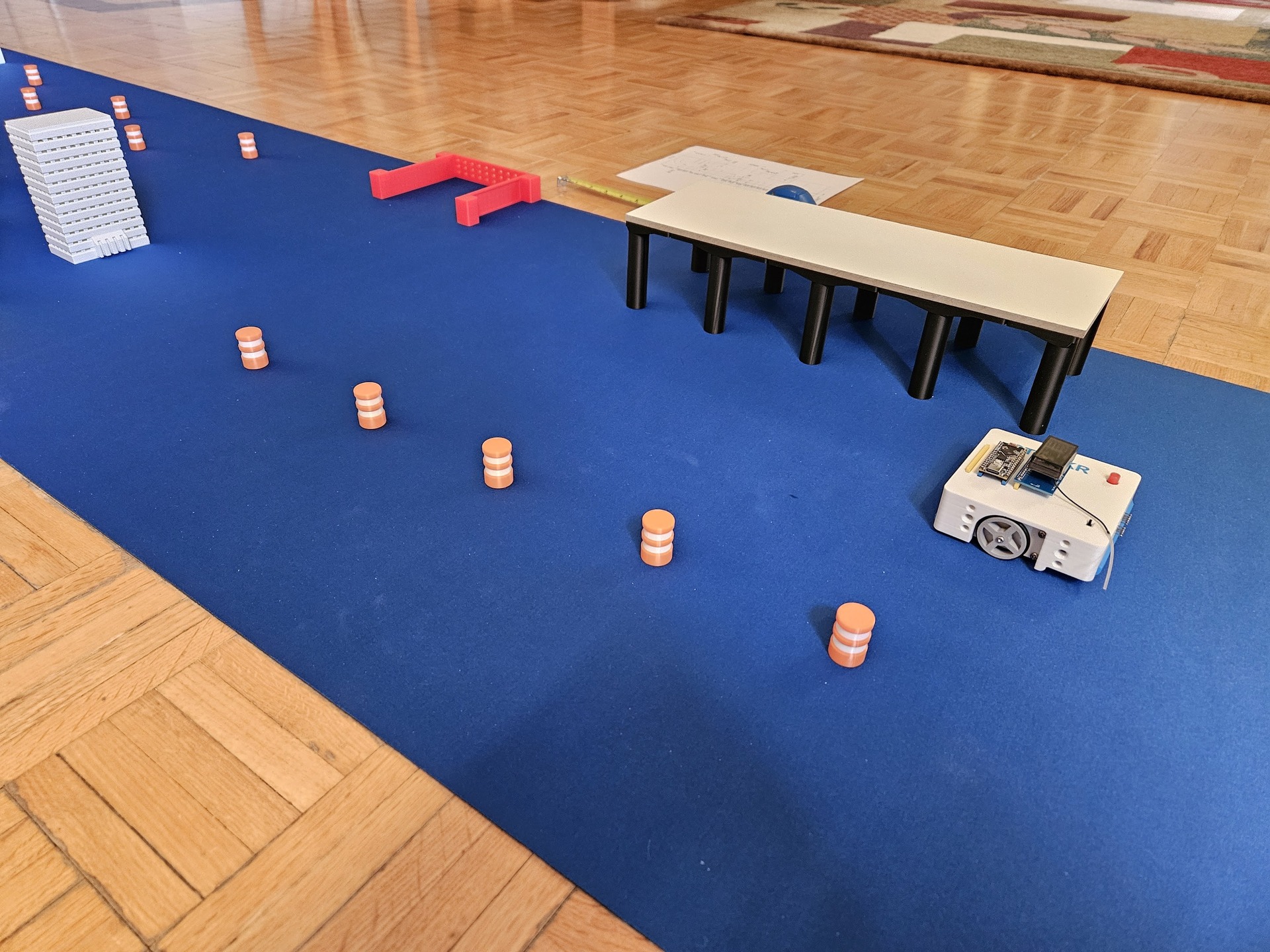

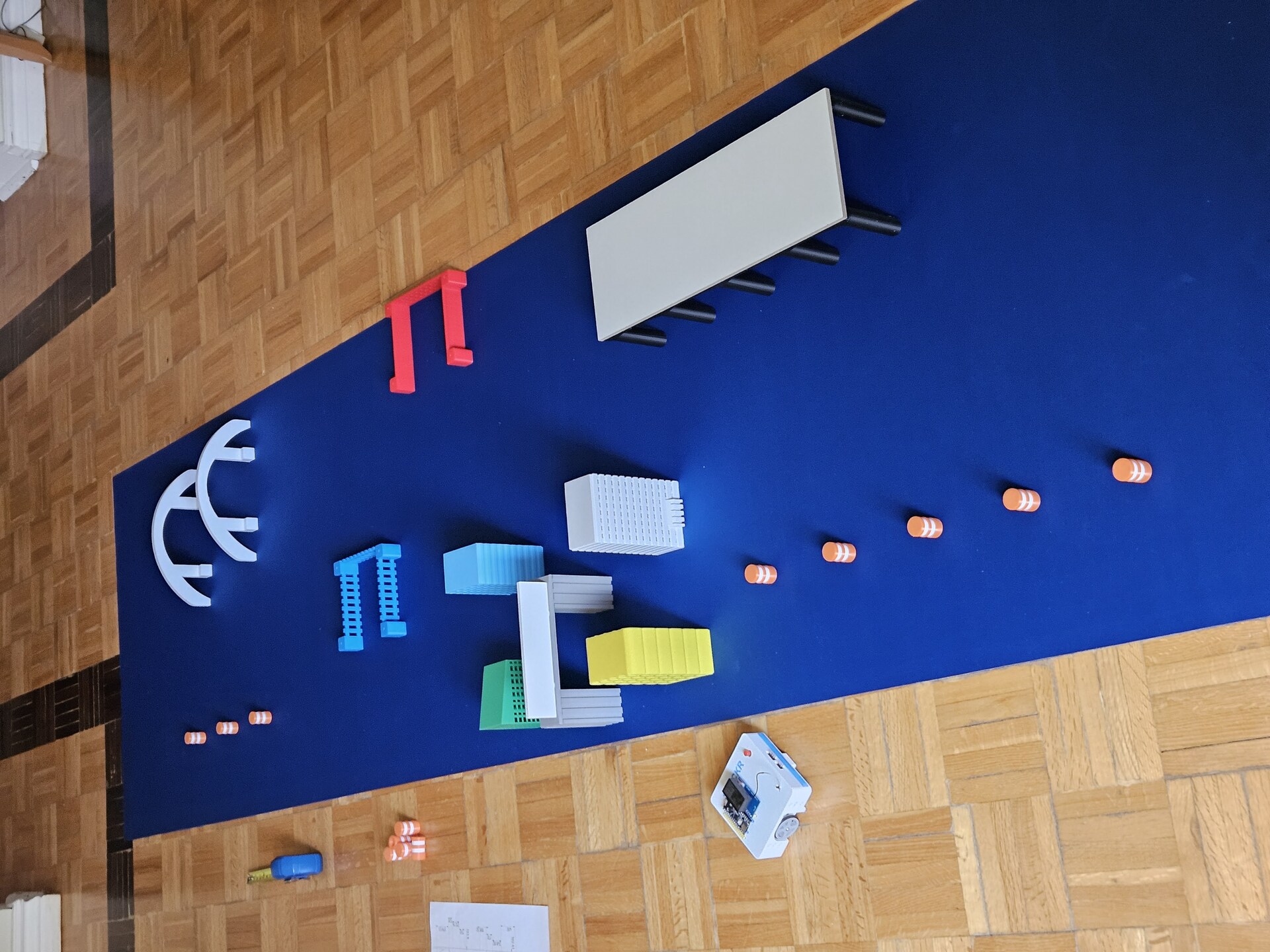

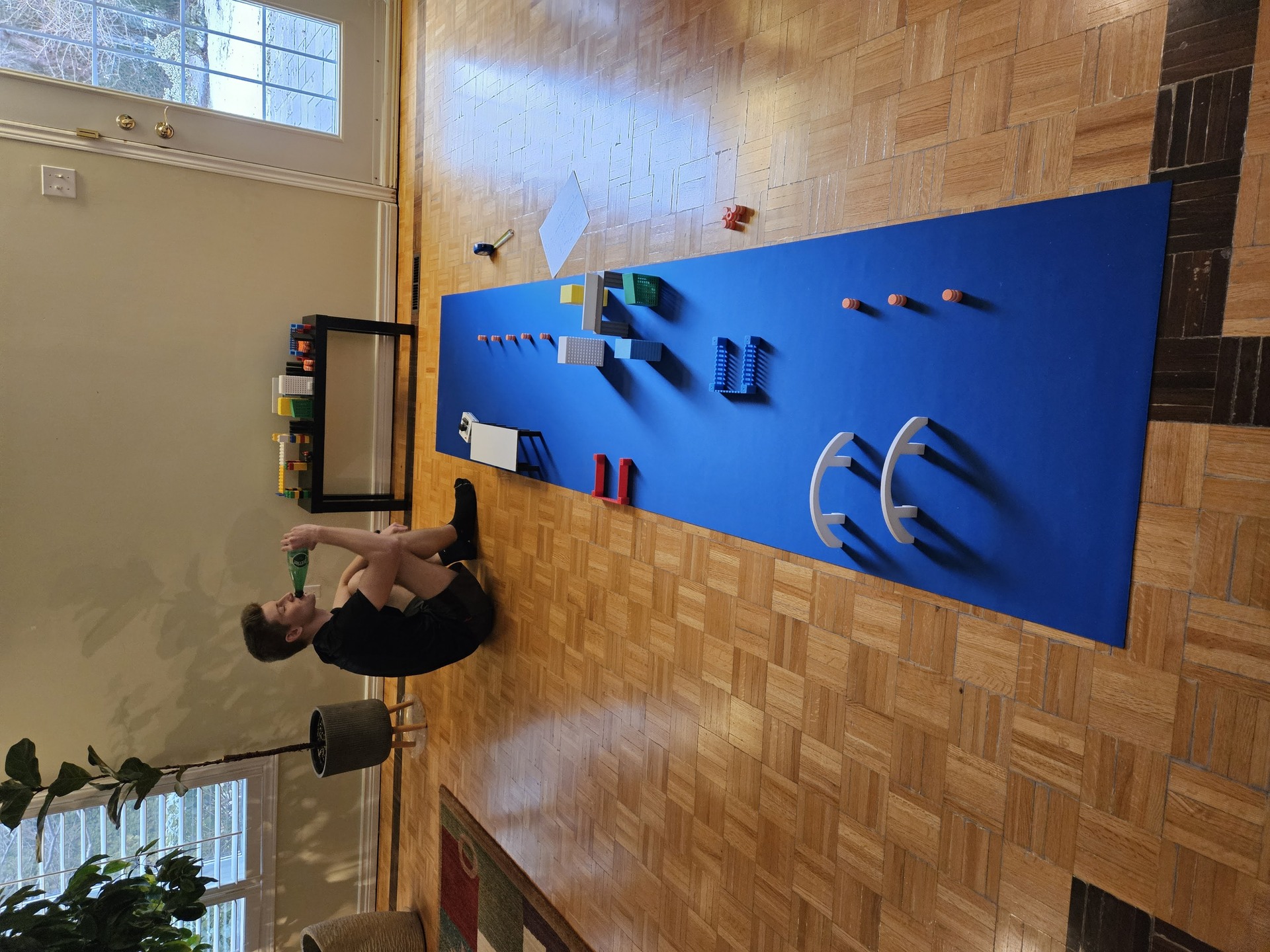

First Layout
CLICK TO ENLARGE

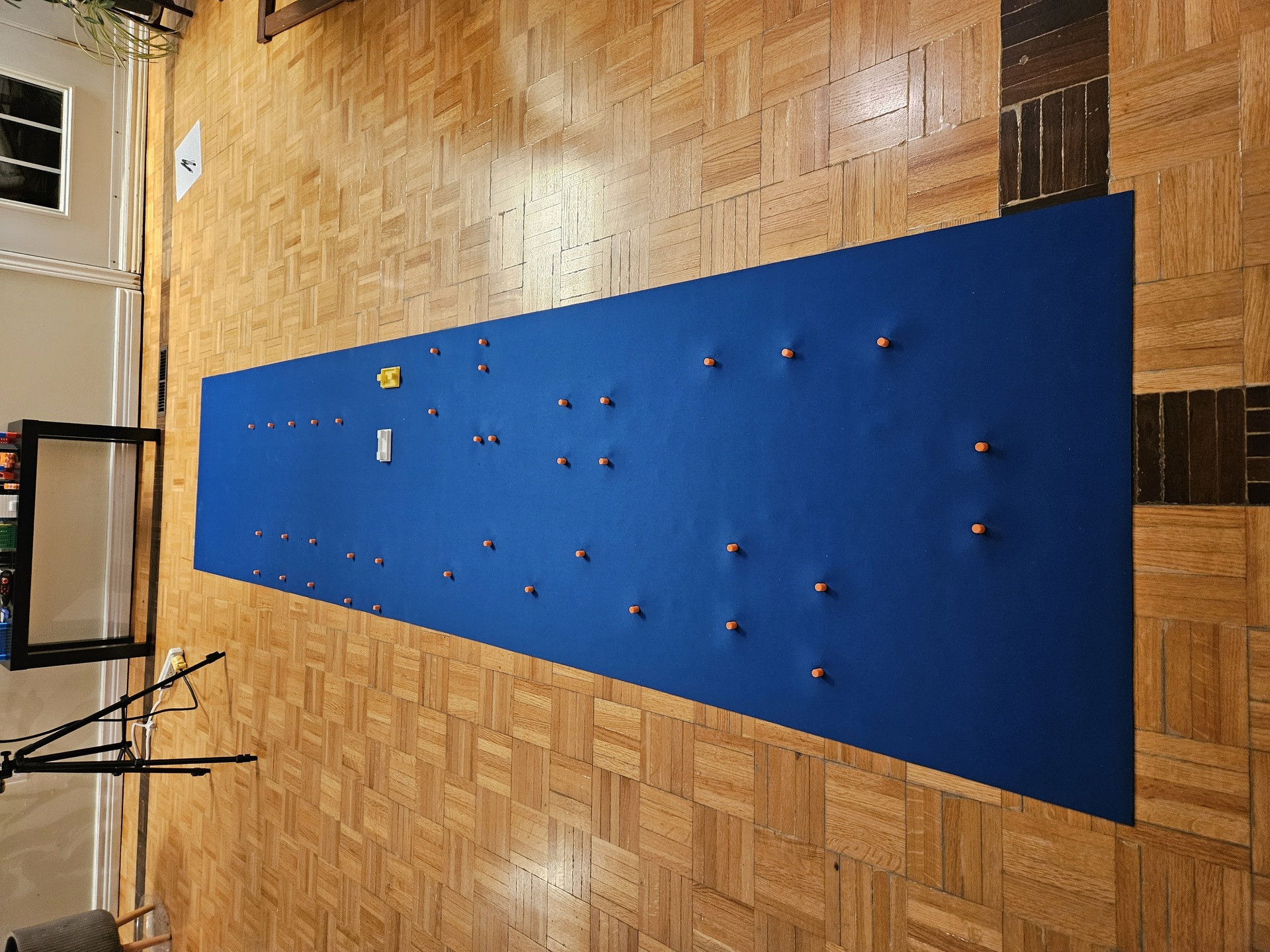

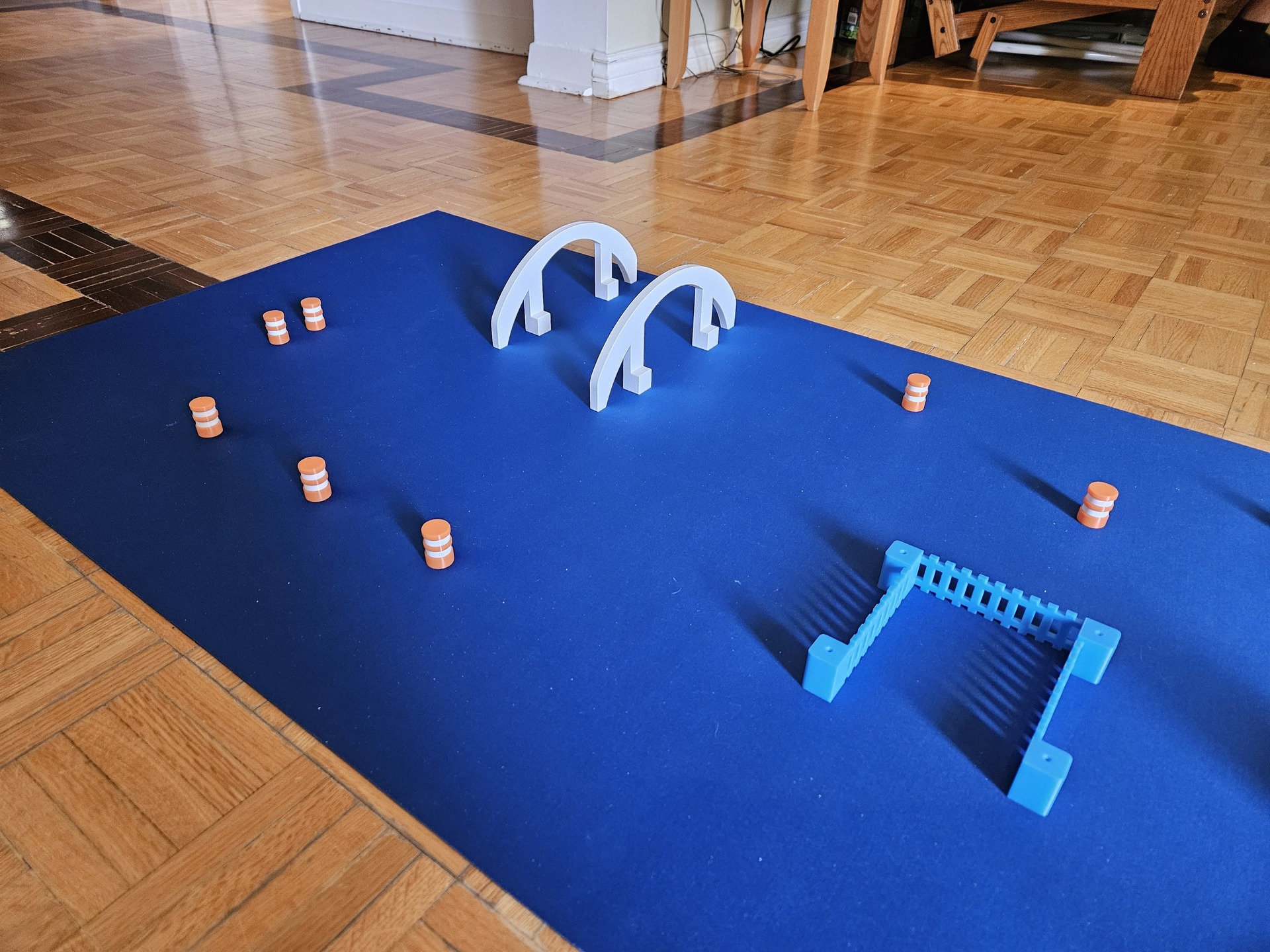

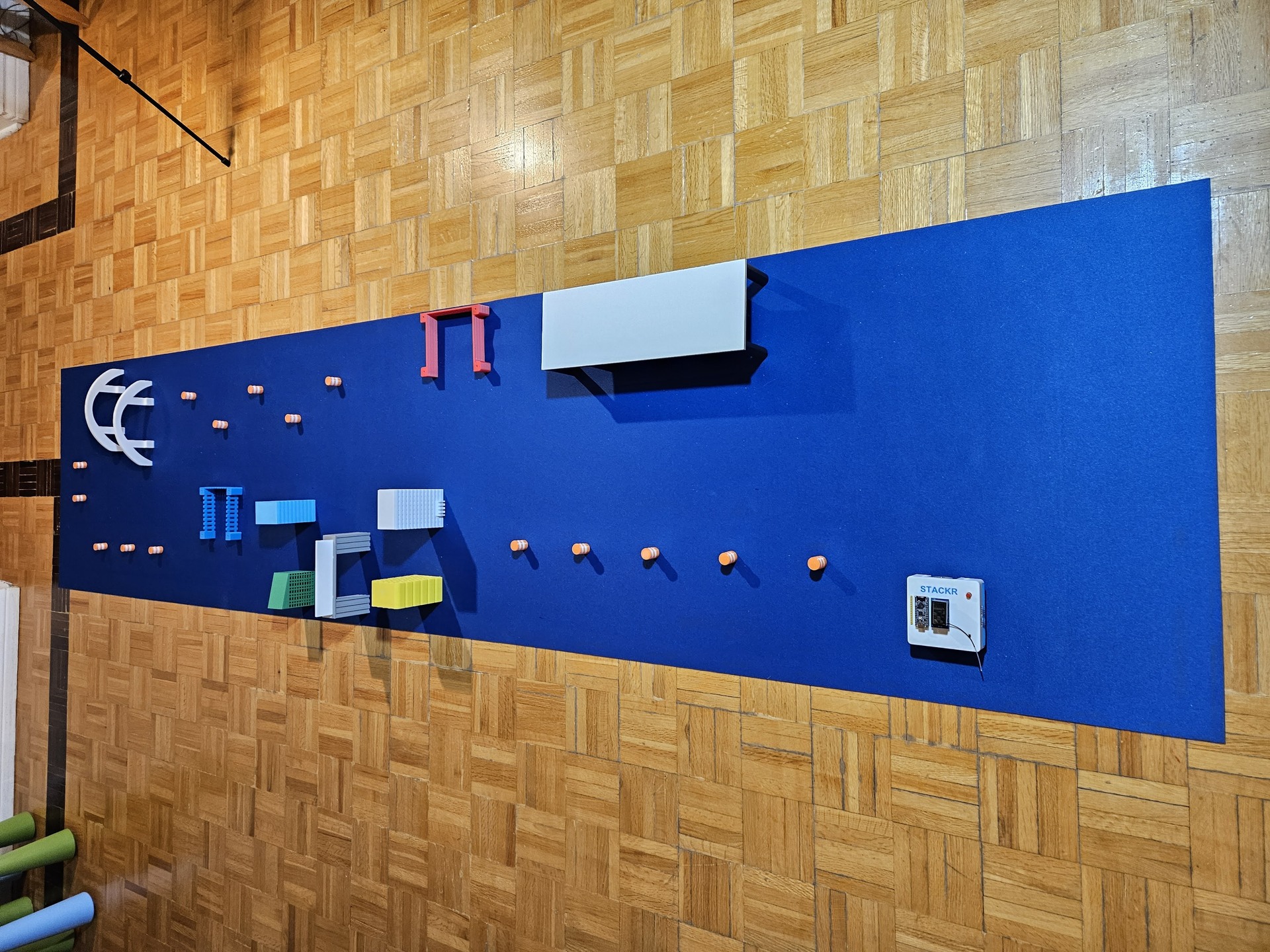

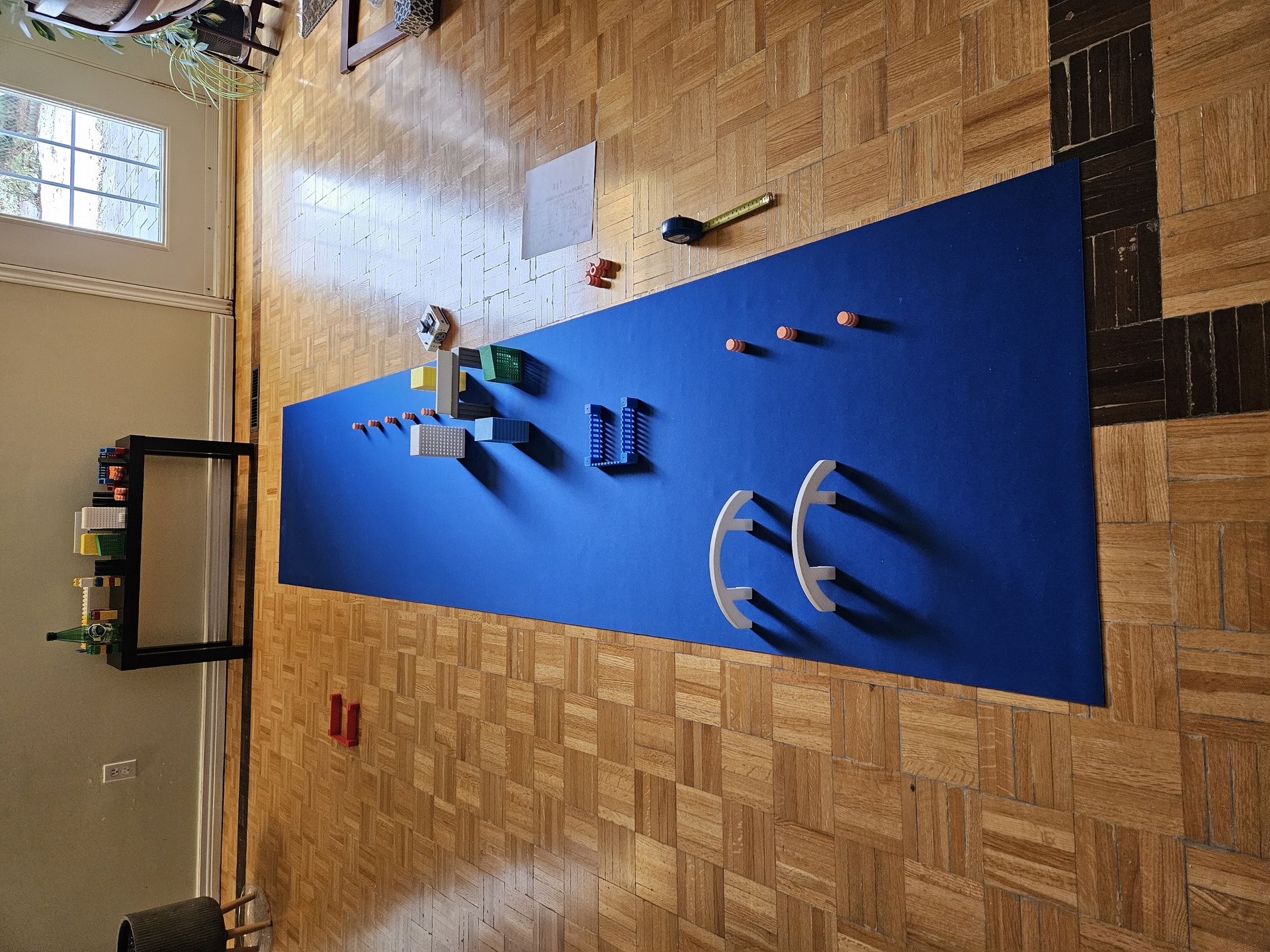

First Layout

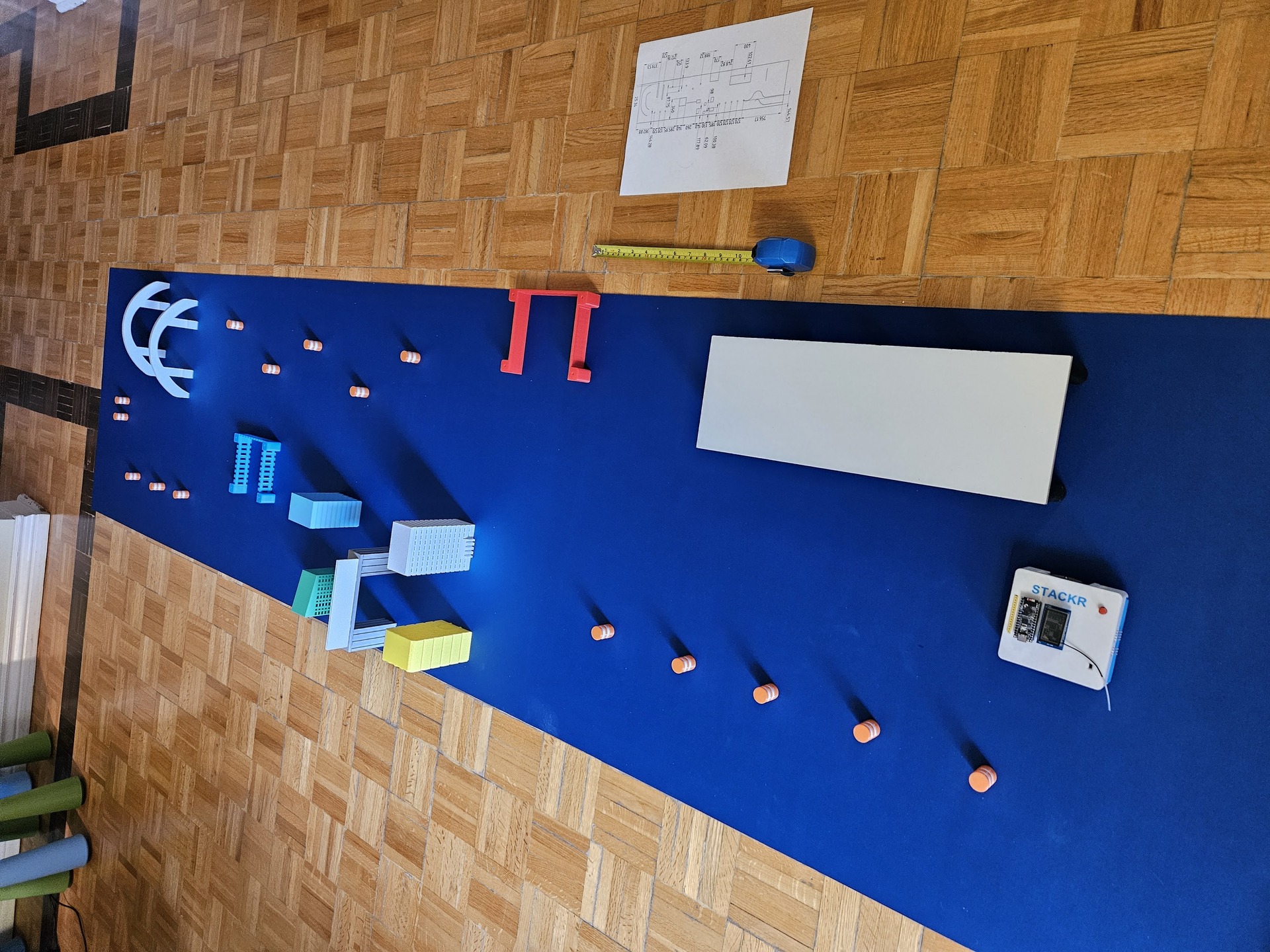

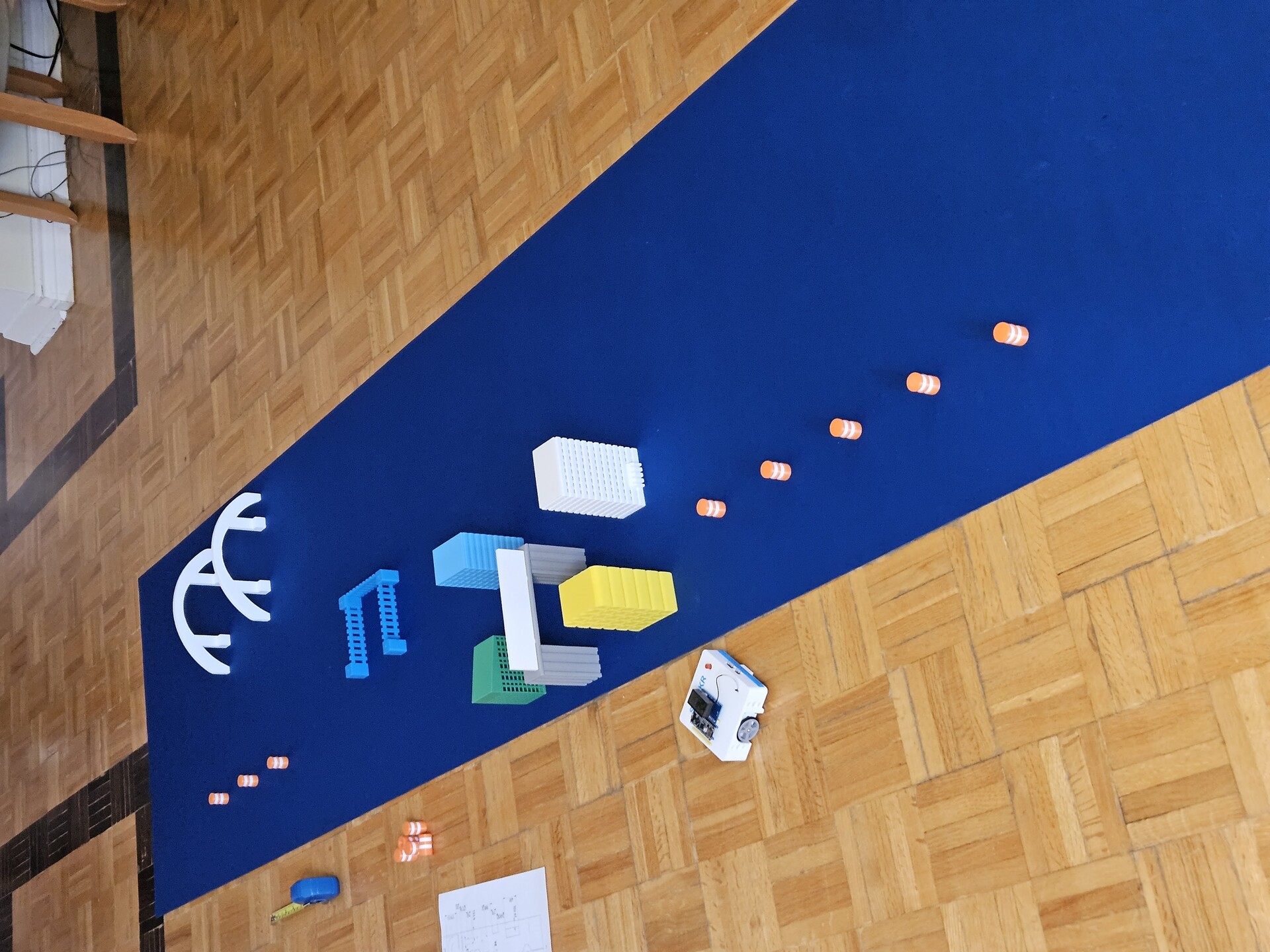

One mat during setup, with arches, a building block, and a tape measure beside the plan.

Printed Tower
CLICK TO ENLARGE

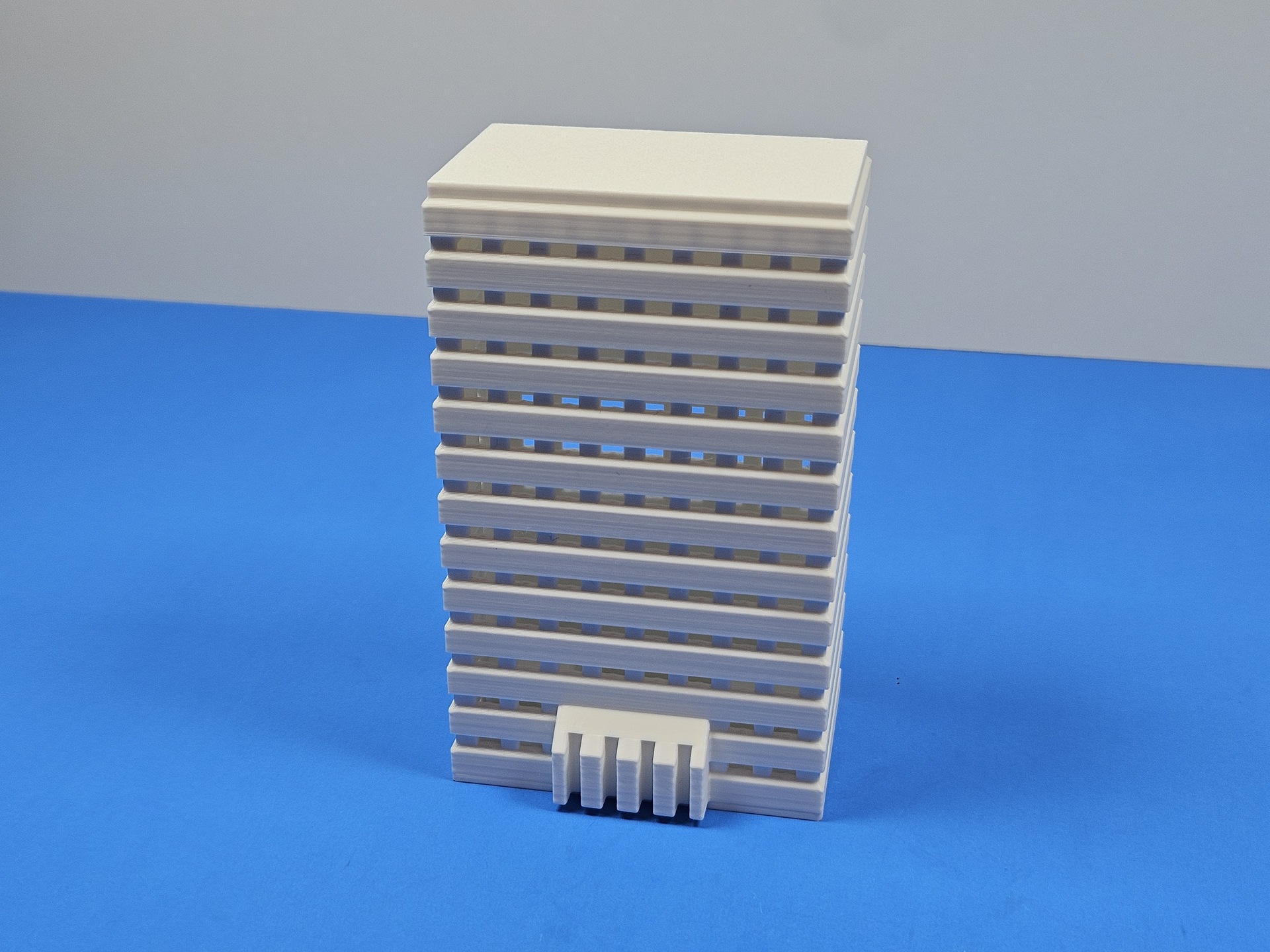

Printed Tower

One of the white buildings made for the course.

Gate Frame
CLICK TO ENLARGE

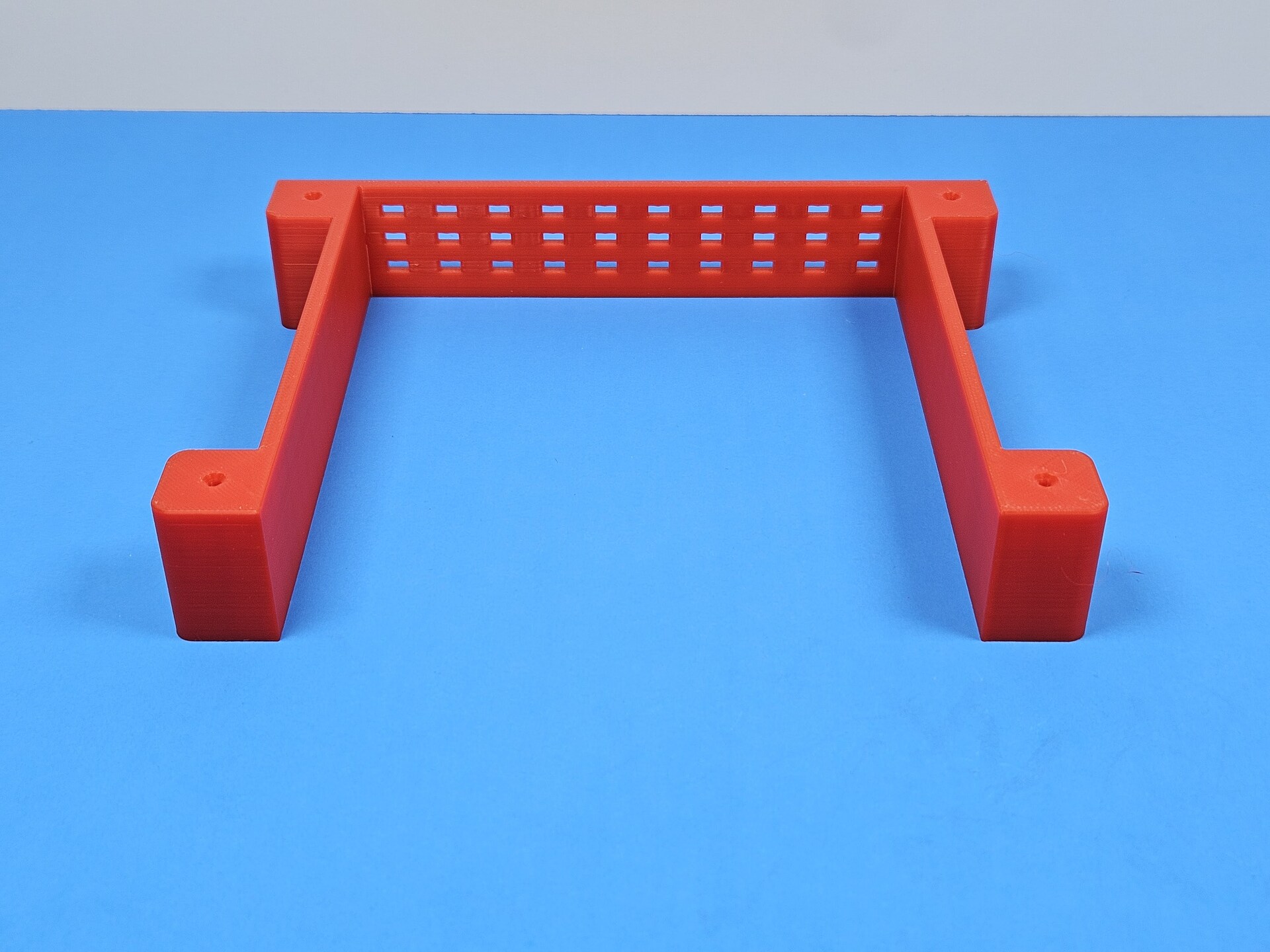

Gate Frame

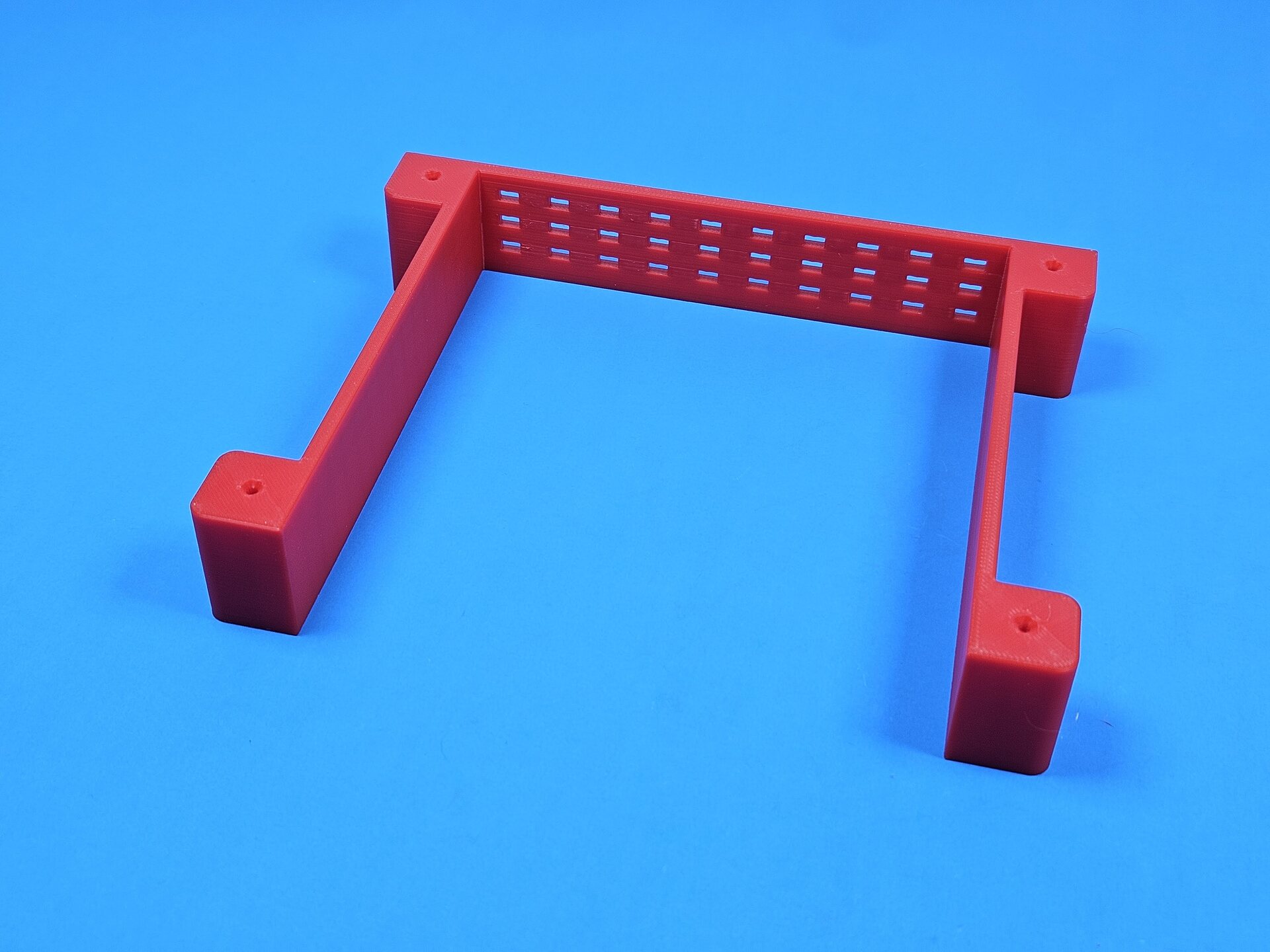

A red printed frame used as a gate beside the lane.

Race at School
CLICK TO ENLARGE

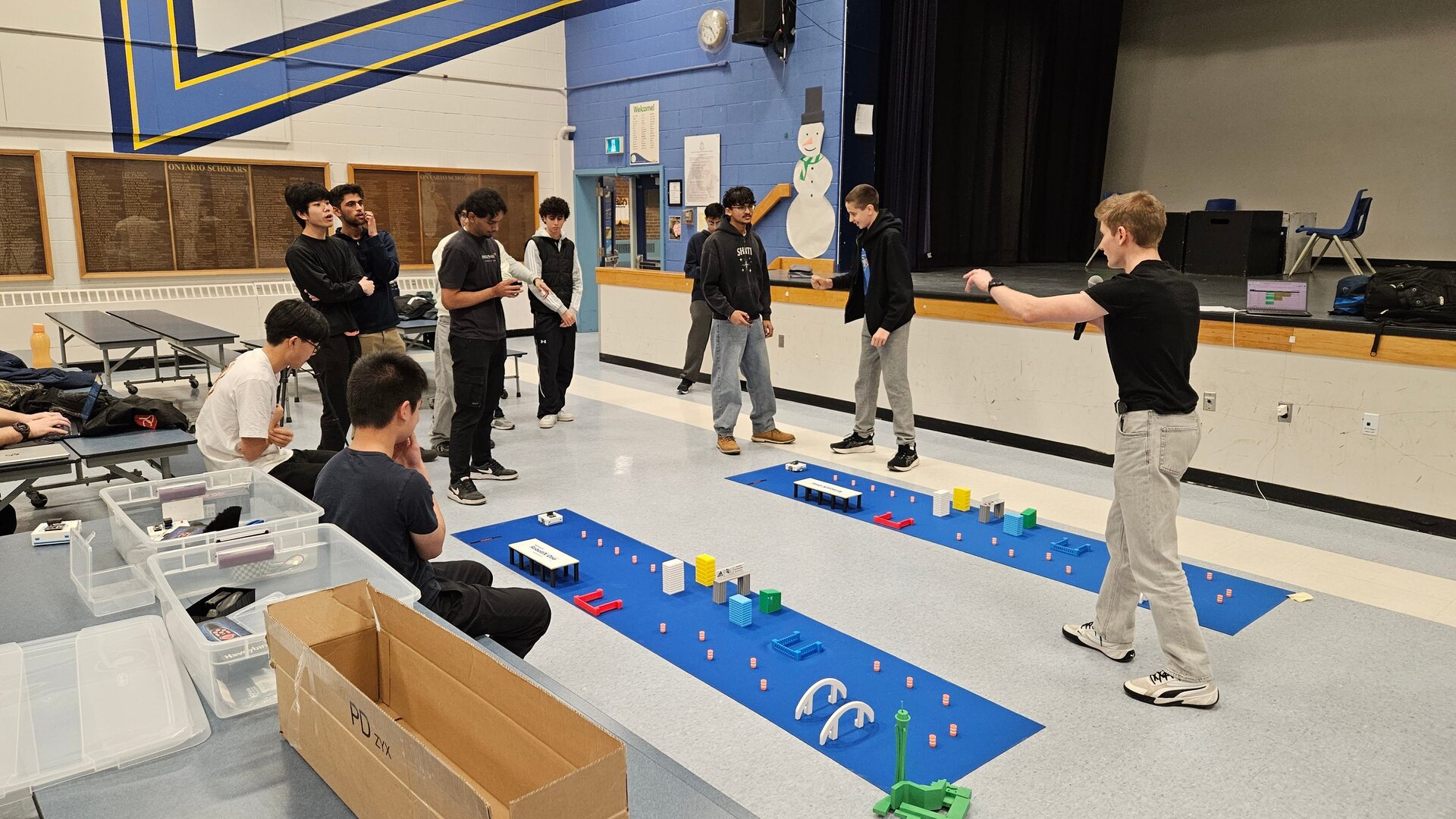

Race at School

The two mats in the gym, with Anthony running the event he organized.

// SLIDESHOW

All Project Pictures

45 photographs and drawings from this build.

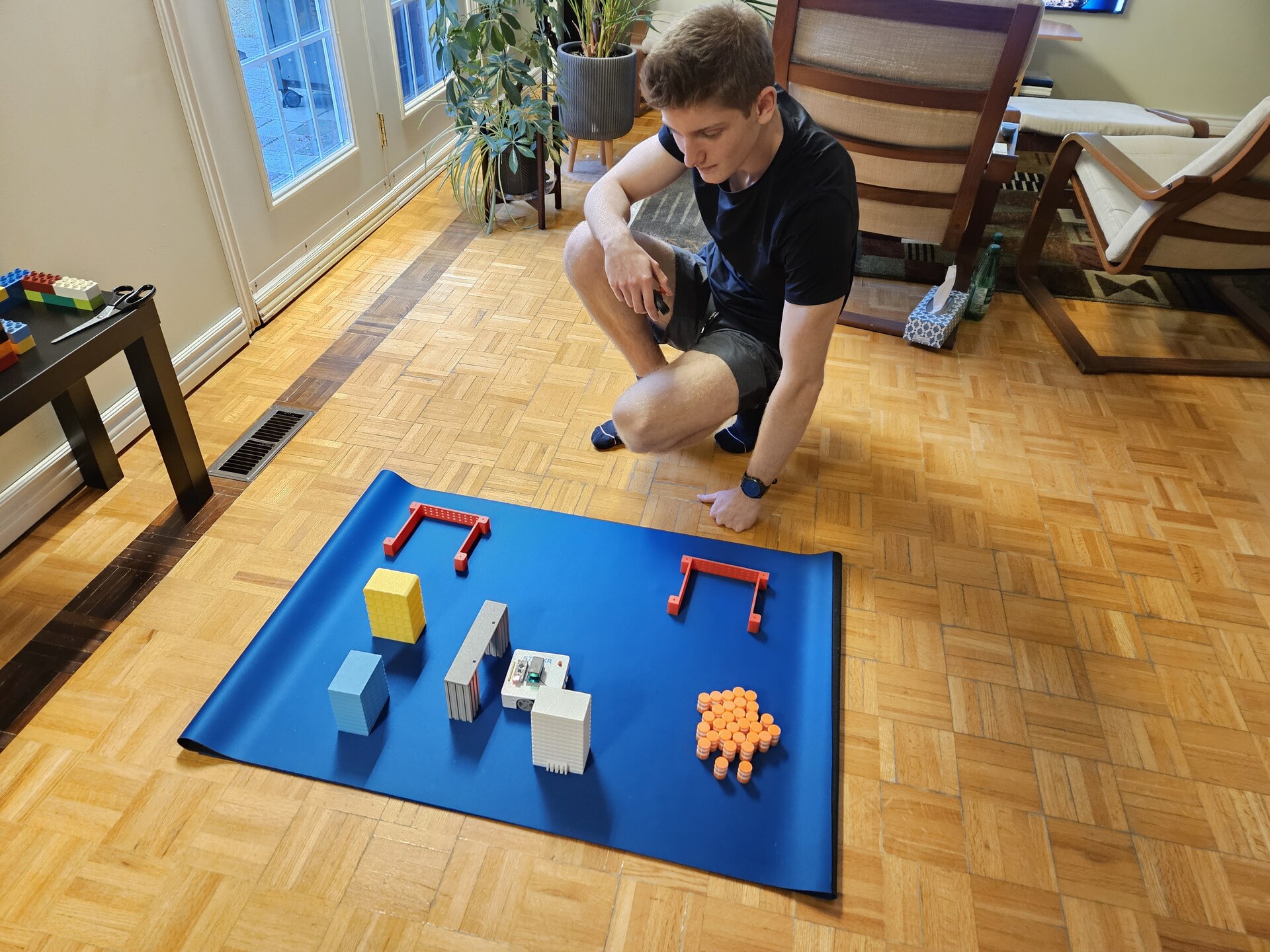

20260110_160246.jpg 1 / 45
// TECHNICAL SPECIFICATIONS

System Parameters & Metrics

PARAMETER SPECIFICATION / VALUE
Event School robot-racing competition, organized by Anthony Nistor
Courses Two tracks, one per mat
Surface Long blue mats
Obstacles Printed buildings, gates, fences, and arches
Lane Markers Orange construction cones
Finish Parking platforms

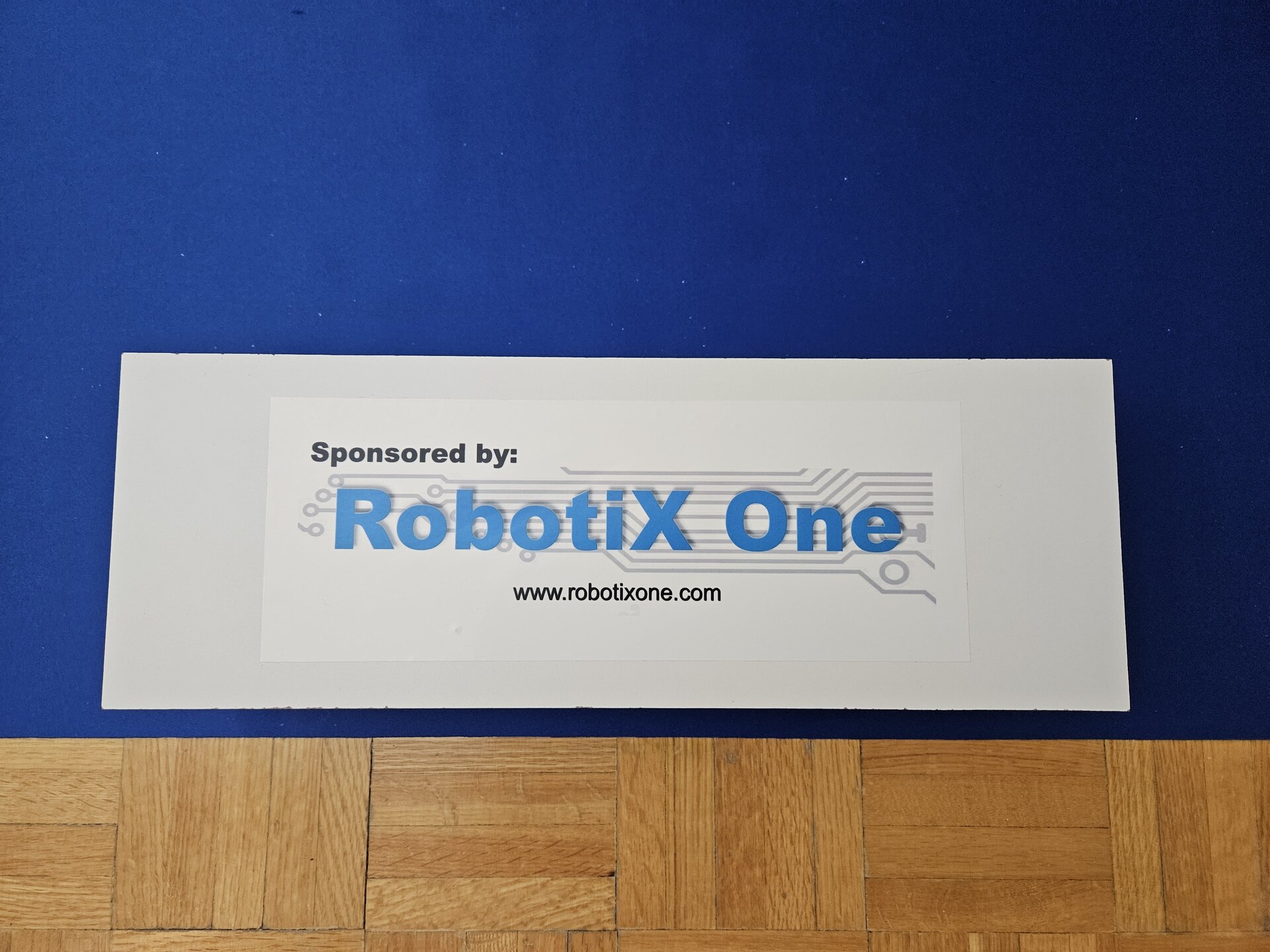

Sponsor Mark RobotiX One, printed on the parking platforms
